High speed for small volumes.
T6960 was designed for ultra fast testing of small parts (pneumatic valves, pressure switches, micro-valves in plastic for medical use, needles, catheters, biomedical components etc.).
This characteristics makes it suitable for use on high production automatic machines, allow assembly of the pneumatic unit behind the part being tested, for maximum reduction of the parasite volume. The differential measurement technology also allows detection of extremely low leaks (example medicinal valves: 10 cc/h at 2 bar in 0.1 s. of testing).
|
|
|
Test time of a few tenths of a second |
Remote pneumatic unit |
Ideal for small pieces (maximum 20cc) |
All the connections you need.
T6960 has a more limited port supply than its larger comrades, but is equally complete: a USB slave port, RS232, RS485 and Can bus.
The front panel has a master USB port assembled on it for connection to a USB key to save the tests conducted, backup/restore parameters and upgrade tool firmware.
The connection to thermal printers, barcode/data-matrix readers and markers takes place automatically using an internal menu.
|
|
|
Usb key |
High power outputs |
RS232, RS485, Can |
So small, yet so powerful.
T6960 can count on a measurement resolution of 0.1 Pa to 1 bar (0.5 Pa to 6 bar) stable and noise-free, sharing a part of the measurement section implemented on the higher series T8000 and T9000.
Despite being designed as an entry-level tool, the measurement performance is absolutely comparable to those of the rest of the ForTest range.
|
|
Advanced measurement performance |
Resolution from 0.1 Pa |
Remote pneumatics.
T6960 avails of an external pneumatic unit with built-in micro-valves and differential pressure transducer, for assembly as close as possible to the part to test. It is entirely managed directly from the central unit with the dimensions and interface identical to the T6990.
|
|
|
Ideal for volumes up to 20cc |
Remote external unit |
Differential technology |

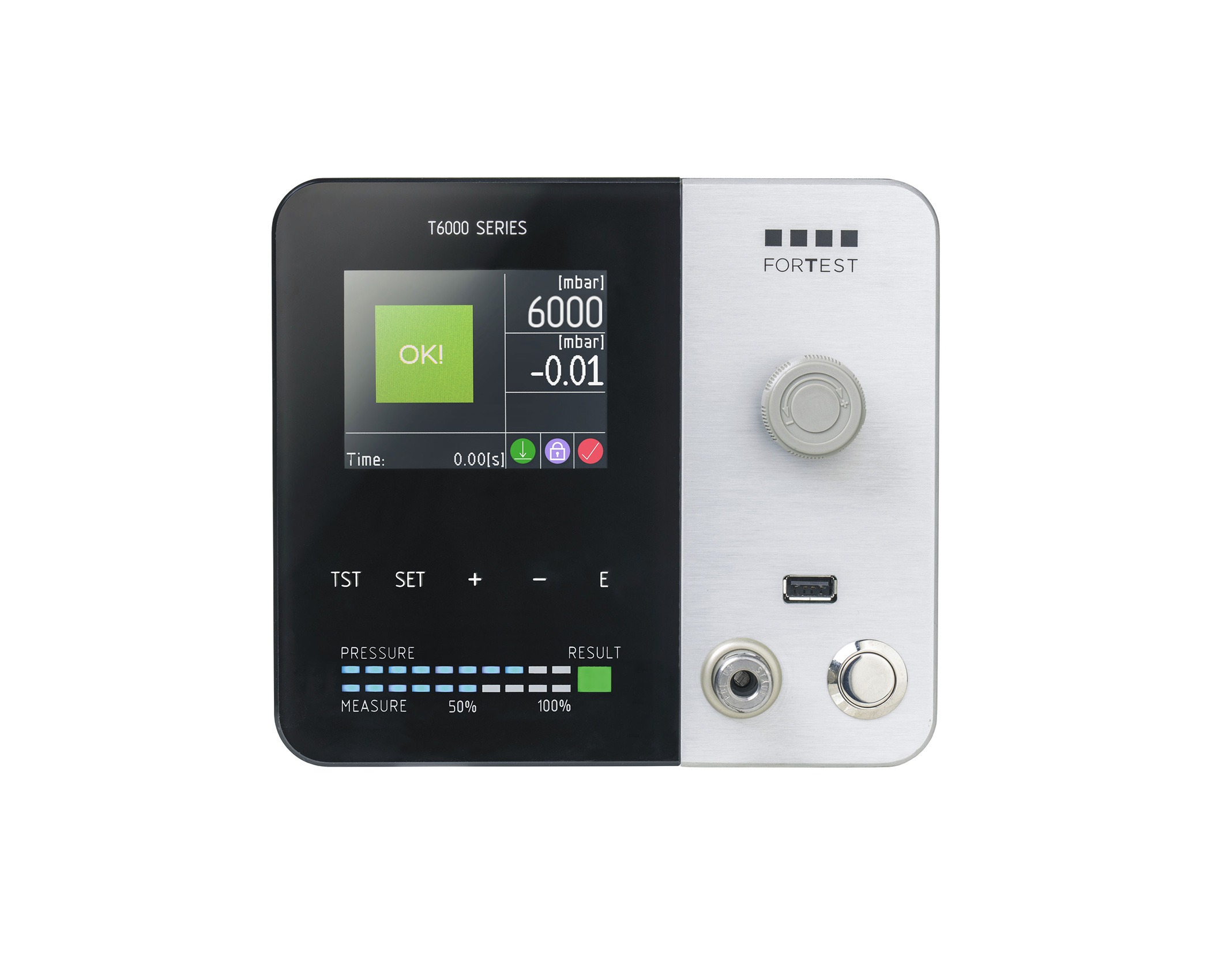

Everything is where it should be.
Despite the compact dimensions which made use of more simplified menus necessary, the T6960 user interface was however designed to facilitate programming of the test parameters.
The front panel is made of a single sheet of tempered glass and aluminium, which makes it extremely easy to clean, making the T6960 suitable for use in the laboratory and on the production line.
The extensive internal menus are easy to understand and the graphic interface was designed to only display important information.
Everything is exactly where it should be.
|
|
|
User-friendly interface |
Easy to clean |
360° use |
