T8999

Hydrogen leak detectors


Easy and clean leak identification.

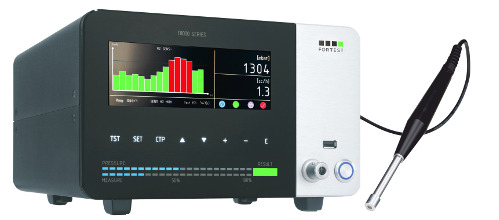

T8999 is an equipment designed to meet the increasing need for easy and clean identification of the position of the leak on a piece being tested, therefore eliminating the need for methods such as water tank immersion or use of leak detecting sprays, which are harmful for the pieces which could develop rust or pieces that are difficult to accurately clean.
The probe, with a 30° arm, enables approach to the most critical leak points, and signals its position and size, helping the operator with the indication led and warning buzzer.
The mix of hydrogen used is 5%, therefore not explosive or dangerous for the work environments or the operators.



Aluminium probe with 30% joint Warning led and buzzer Non-explosive, 5% hydrogen mix

Limitless connectivity.
The new T8999 equipment includes ports for the USB slave, RS232, RS485, Profinet, EtherNet IP and EtherCAT. Assembly may also include an optional Ethernet port and a 26-pole connector with 4 inputs and 8 outputs, which are completely programmable, for interfacing with the external valves, safety barriers, switches, etc...
The front panel has a master USB port assembled on it for connection to a USB key to save the tests conducted, backup/restore parameters and upgrade firmware.
The connection to thermal printers, barcode/data-matrix readers and markers takes place automatically using an internal menu.


Usb key High power outputs RS232, RS485, Can, TTY Ethernet and auxiliary connector

Double use method.
T8999 has a dual use, integrating both the classic absolute decay leak test method and that of leak identification.
The test parameters allow automatic start-up of the leak identification cycle in the event of a rejected piece, making the process semi-automatic.
The sensitivity of the leak detection probe is 1 cc/h, independent of the pressure and the volume being tested.



1 cc/h sensitivity Semi-automatic programming cycle


Optimised pneumatic section.
Assembly of the latest generation solenoid valves has enabled a 30% increase in the filling speed compared to the previous model, maintaining reliability unaltered over time. This instrument do not require expensive maintenance in the pneumatic department. Actually, our objective is to make them increasingly reliable and long-lasting.



Filling speed +30% High strength against humidity No periodic maintenance

Innovative design.
What appears to be a simple design exercise, in fact hides an in-depth study to make use and understanding as simple as possible.
The front panel is made of a single sheet of tempered glass and aluminium, which makes it extremely easy to clean, making the T8999 suitable for use in the laboratory and on the production line.

User-friendly interface Easy to clean Use in sectors at 360°

Model 0-1bar 1-2bar 2-6bar 6-10bar 10-20bar 20-50bar
Dp / flow accuracy 0,5% RDG+3DGT 0,5% RDG+3DGT 0,5% RDG+3DGT 0,5% RDG+3DGT 0,5% RDG+3DGT 0,5% RDG+3DGT
Dp / flow measurement range 0-65 mbar 0-65 mbar 0-65 mbar 0-65 mbar 0-65 mbar 0-65 mbar
Dp / flow resolution 0,001 mbar 0,002 mbar 0,005 mbar 0,01 mbar 0,1 mbar 0,1 mbar
Filling pressure accuracy 0,5%FS 0,5%FS 0,5%FS 0,5%FS 0,5%FS 0,5%FS
Filling pressure measurement range 0-FS 0-FS 0-FS 0-FS 0-FS 0-FS
Filling pressure resolution 0,1 mbar 0,1 mbar 0,1 mbar 1 mbar

1 mbar 10 mbar
Leak measurement accuracy in cc/’ 1%RDG+0,03cc/min 1%RDG+0,03cc/min 1%RDG+0,03cc/min 1%RDG+0,03cc/min 1%RDG+0,03cc/min 1%RDG+0,03cc/min
Leak measurement range in cc/’ 0-10 cc/min 0-10 cc/min 0-10 cc/min 0-10 cc/min 0-10 cc/min 0-10 cc/min
Leak measurement resolution in cc/’ 0,01 cc/min 0,01 cc/min 0,01 cc/min 0,01 cc/min 0,01 cc/min 0,01 cc/min
Volume measurement accuracy in cc/’ 1%RDG+2cc/min

1%RDG+2cc/min

1%RDG+2cc/min

1%RDG+2cc/min

- -
Volume measurement range in cc/’ 0-500 cc 0-500 cc 0-500 cc 0-500 cc - -
Volume measurement resolution in cc/’ 0,1 cc/min 0,1 cc/min 0,1 cc/min 0,1 cc/min - -
Unit of measurement mbar, bar, psi, mmHg, mmH2O, Pa, HPa, cc/min, cc/h, pressure/s.
Dimensions 270X160X300 mm
Weight 8 kg
Display dimensions 800x280 pixel
Working temperature range 5-40 °C
Port RS232 2
Port RS485 1
“Master” USB port 1
“Slave” USB port 1
Ethernet port Optional
I/O signals Start, Stop, Filling, Test, Good, Reject, 4BCD
Auxiliary I/O signals (optional) 8 output programmable, 4 input programmable, 4BCD
Number of programs 300
Test archive memory Advanced
Lock with password Yes
Program name Yes, 16 characters
Note The resolution to be considered for accuracy is always 1 Pa.

Reference Normatives: EN 61010-1, EN61326-1 / EN61326/A1, EN61000-3-2 / EN61000-3-2/A14, EN61000-3-3 / EN61000-3-3/A1, EN61000-4-2 / EN61000-4-2/A1, EN61000-4-3 / EN61000-4-3/A1 / EN61000-4-3/A2, EN61000-4-4, EN61000-4-5, EN61000-4-11, EN1779

  • The resolution for uncertainty calculation is 1 Pa up to 10 bar.
  • The flow measurement of the flow meters is of mass type and referred to the reference condition of 0°C - 1013,25mbar.
  • Flow measurement of leak test equipment is volumetric.
  • Accuracy data are referred to and guaranteed under laboratory calibration conditions.
  • The accuracy of the flow measurement is referred up to 2 bar, for higher pressures variations are possible depending on the characteristics of the model.
  • For measurement scales greater than the limits indicated, the accuracy will be specified in the offer phase.
