M8890

M8890

M8890 is the new double channel equipment at absolute decay pressure by ForTest born as a result of continuous requests for optimization of cycle times in testing lines, and perfect for testing pieces such as lights, medical containers


Applications:

  Automotive   Medical
  Packaging

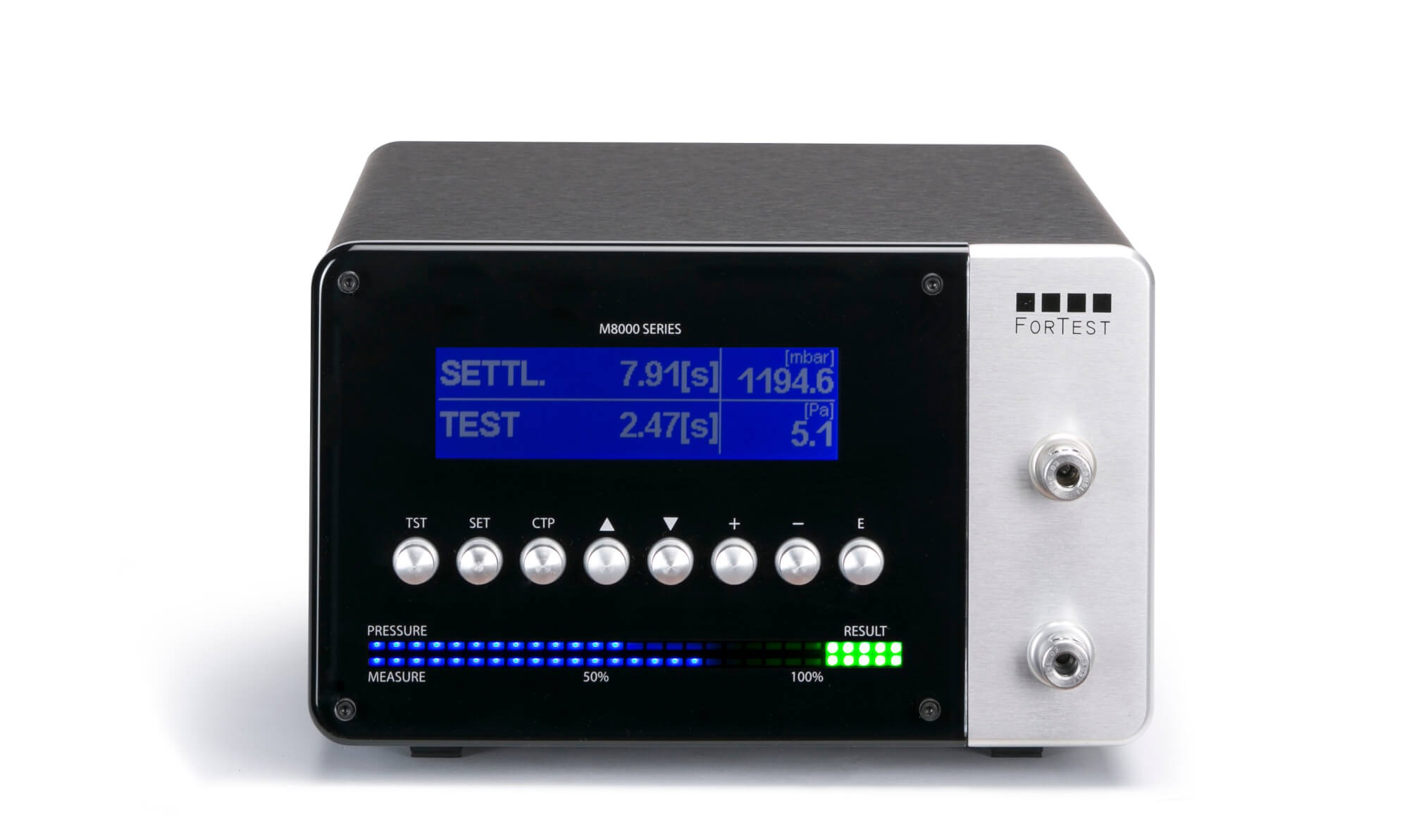

M8890 - ABSOLUTE PRESSURE DECAY

M8890 is the new double channel equipment at absolute decay pressure by ForTest born as a result of continuous requests for optimization of cycle times in testing lines, and perfect for testing pieces such as lights, medical containers, etc. ... A double pneumatic circuit designed ad hoc allows to have a triple pressure regulation:

  • Single manual pressure regulator to test two identical pieces at the same pressure
  • Double manual pressure regulator to test two identical pieces at different pressures
  • Single electronic pressure regulator for ultra precise adjustment

The equipment, extremely compact (same dimensiono of single channel M8990 one) is ideal for end line assembling or for laboratory use and thanks to its many electrical interfaces, it ensures a simple installation on control panels or automation systems. The equipment is available with testing pressure from -1 to 10 Bar.M8890 is equipped as standard version with 24 Vdc AUX connectors double for both channels, a USB port, a RS232 opto isolated port and a opto isolated port for industrial multi test stations networks. External accessories are also available such as printers, Staubli fittings for the connection to the front panel on M0710 (calibrated leaks) or others, kit network sorting for the realization of complex PC networks, electronic pressure regulators, mechanical precise regulators, etc...M8890, thanks to its renewed hardware, M8890 provides a measurement accuracy of 0,1 Pa which allows to make tests at the highest quickness and reliability possible in air leak test field, and, thanks to the double test, to reduce testing time by half. A very simple user interface, a multi language menu, a bar graph indicator which shows test pressure and the detected decay, RGB led indicating good or bad result, complete the the rich equipment.

  • Black anodized aluminium case
  • "No break-through" plexiglass front panel
  • Display of test pressure and of pressure decay in: mbar / mbar/s / Pa / hPA / cc/min / cc/h
  • LCD display: 240x64 pixels and blue back-illumination
  • Graphic visualization of the leak test on Cartesian coordinate plane
  • Mechanical pressure regulator
  • Electronic pressure regulator on demand
  • Measure resolution of pressure decay of 0,1 Pa (for equipment until 1 bar)
  • Obstruction test (standard version)
  • Pieces Counter and Real time Clock Memory
  • Possibility to set up till 150 test programs for each channel
  • Calibration according to ISO rules (Menu accessible to the user and concealed by a control algorithm)
  • Connector with 24 Vdc expansion signals
  • RS232 opto isolated port
  • Opto isolated Port for industrial multi points networks
  • USB port for PC connection
  • USB flash drive to record the tests, radio remote control to manage the tests, Wi-fi, Ethernet and Internet direct connections (on request)
  • Working temperature min. 5°C / max. 40 °C
  • Weight for the basic version: 9 kg
  • Dimensions: 270X160X300 mm
  • Pressure full scale: (mbar) : -1000, 200, 500, 1000, 2000, 3000, 6000, 10000
  • Power supply: 110 Vac 50/60Hz, 230 Vac 50/60Hz
  • Different pneumatics available for tubes (mm): 4x2,7, 6x4, 8x6
  • Test Gas: Hydrogen, Compressed air, Nitrogen

  • External exhaust solenoid with protection filter
  • External start button
  • External start/abort pushbutton
  • External pushbutton 4 programs selection
  • Start pedal
  • Barcode reader
  • Adhesive label for printer 4500pcs
  • Aux signals extension cable
  • Venturi Vacuum generator
  • Air filter
  • Staubli male connector
  • Precision micrometer nozzle
  • Micrometer nozzle
  • M series manager software

  • Interior exhaust valve
  • Kit sniffer Hydrogen H2
  • Frontal precision pressure regulator
  • Electronic pressure Regulator
  • I/O 24 Vdc expansion signal card
  • Bi-manual logic Start Input
  • Ethernet plug/TCP-IP
  • Active USB port
  • WI-FI connection
  • Radio remote control selection Kit
  • High resolution measure - (STANDARD)
