Leak Test Manager

Software application for leak tests traceability


Leak Test Manager is a software application for PC compatible with Windows XP, 7, 8 and 10 that allows interfacing ForTest equipment to a computer via an RS232 connection (or Ethernet if optional is available on the instrument)

The features offered by the software are the follows:

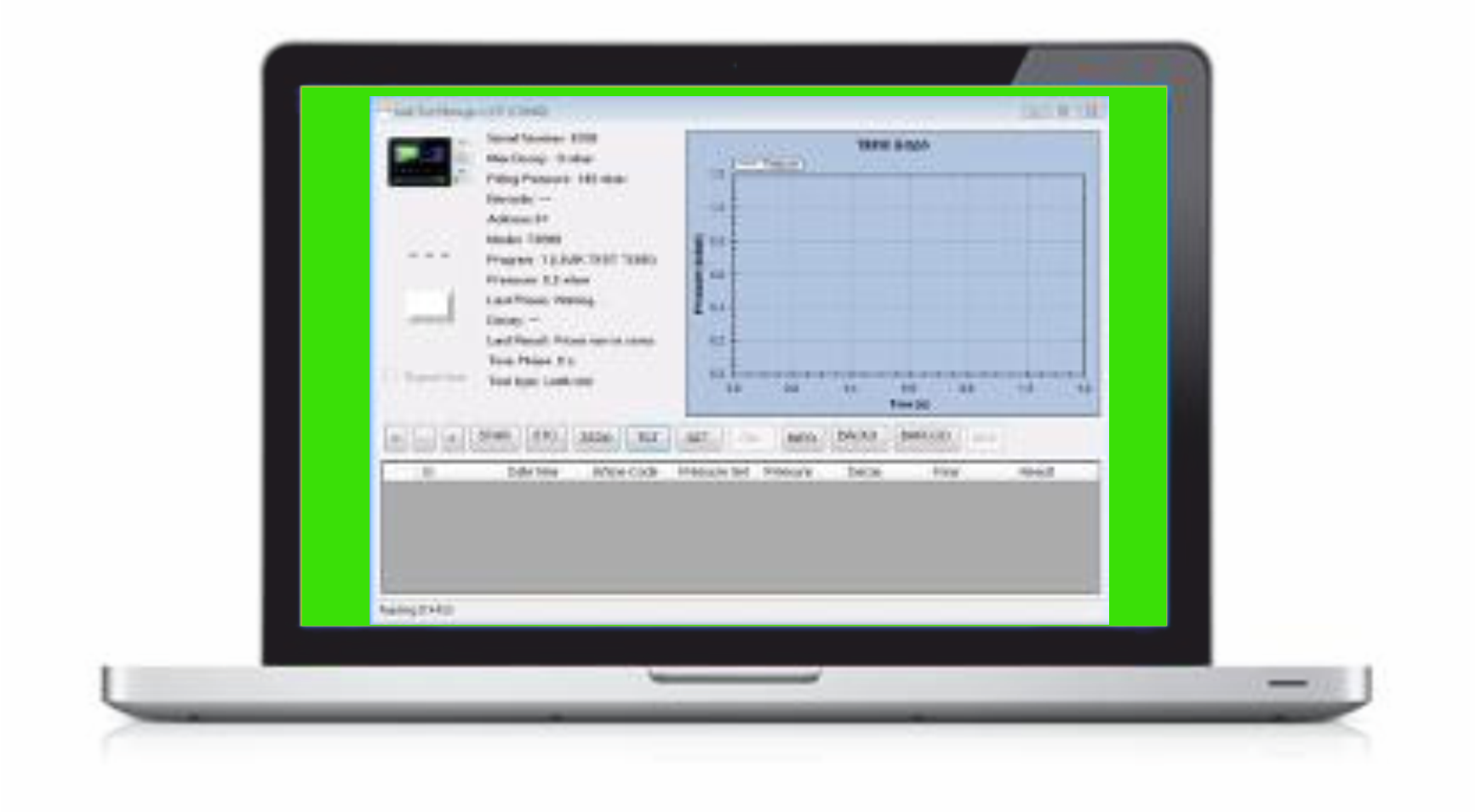

  •      Real-time display of data detected by the control unit
  •      Graph of pressure and decayin real time
  •      Set test parameters directly via software
  •      Automatically download test results to Excel, Access or CSV files
  •      Interface to barcode reader for article code tracking with test results
  •      Possibility to start/stop/change testing programs
  •      History of the results with measured values
Is it possible to require a demo version of the software for evaluation purposes



  • Processor I3 or higher with at least 4GB RAM
  • Supported operating systems: Windows XP, 7, 8, 10
  • Required Office package installed for results in Excel and Access format
  • Request .NET 2.0 Framework or above
  • Supported RS232 and Ethernet connection
  • Up to 10 stations controlled by a single software
  • Possibility to interface barcode reader to PC or instrument
  • Software available for M-Series and T-Series instruments (excluding M2710, M2730 digital calibrators)
