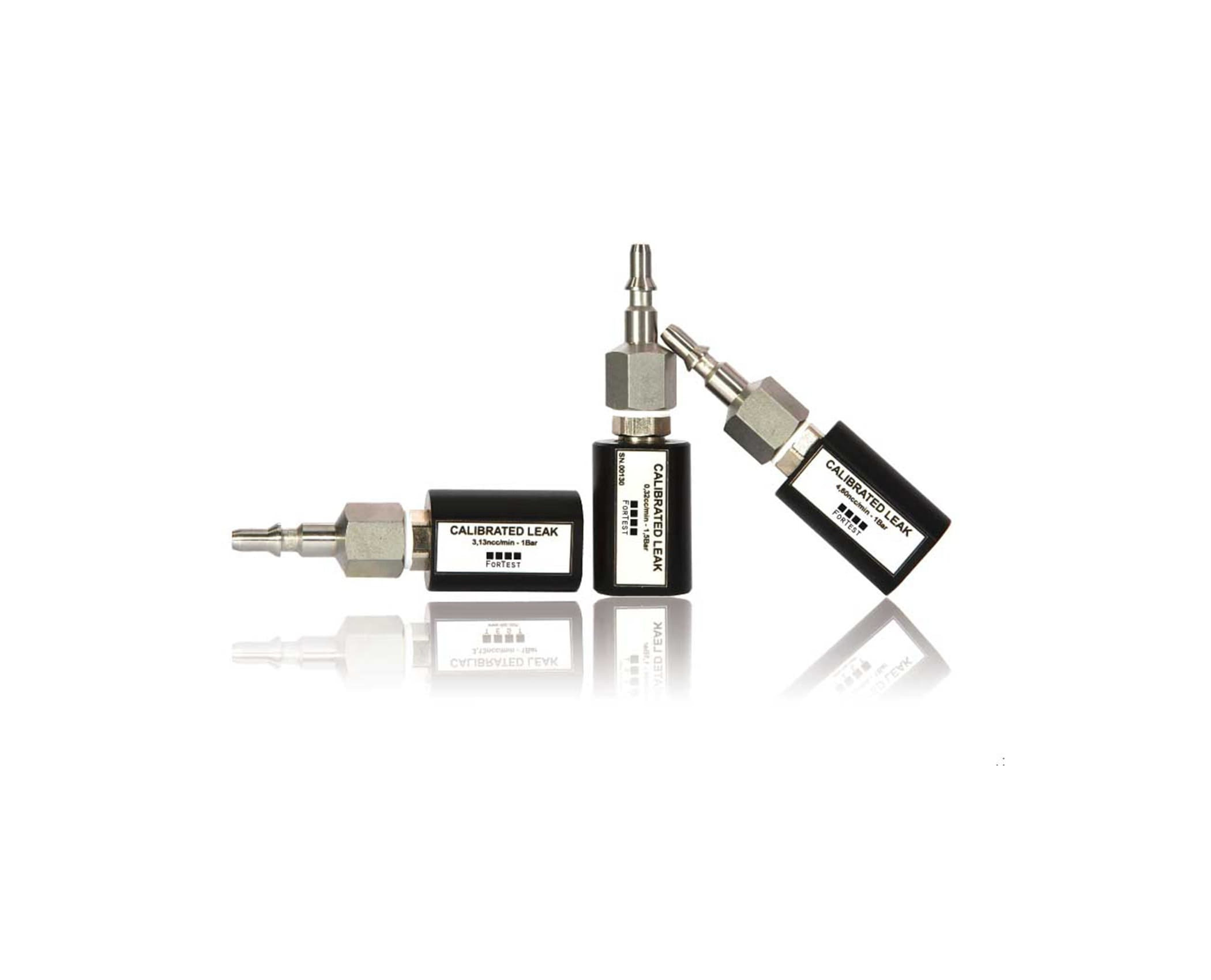

T0710

Calibrated leak


T0710 is the new ForTest® calibrated leak series for verifying leaks during automated tests. The instrument has been patented european wide.

Employees that use leak identification instruments need to know the calibration of those instruments at any moment, so T0710 is the key element used to verify the calibration. If the instrument recognizes the calibrated leak, it is correctly set.

T0710 is sold with the 1/8” pneumatic connector or with Staubli® male connector.

ForTest calibrated leak is composed by an element calibrated for the requested porosity (leak scales varying from 10 cc/h to 200 cc/min).

T0710 is made of stainless steel, to guarantee an exceptional stability and corrosion protection.

ForTest T0710 is made using specific Pressure and Flow values, in order to satisfy, with maximum precision in terms of loss rates, the customer needs.

Every T0710 is supplied with a calibration certificate and a protective package for a correct stockage.


Advantages


High stability over time Two connection modes Customizable in values Easy to install

  • Weight 28g
  • Accuracy ±5% + 0,03 cc/min
  • Max working pressure 10 bar
  • Leak scales from  10 cc/h to 200 cc/min
  • Made of stainless steel
  • SIT certificated calibration
  • Staubli male connector
  • Usable for pressure and vacuum applications
  • Pressure full scale: from -1 to 10 bar (customized for the client)
  • Flow full scale: (cc/min) : 200
  • Power supply: No Supply
  • Different pneumatics available for tubes (mm): Staubli Male, 1/8 Gas Male, 1/4 Gas Male
  • Test Gas: Hydrogen, Compressed air, Nitrogen
