T4890

Absolute micro-channel bi-channel test instrument


Born to be integrated on benches with high production rates, it provides an hardaware that can be compared to that one of top series equipment, and with a measurement accuracy of not less than 0,1 Pa.

T4890 provides an innovative 2,5 “ high-resolution Oled display, a USB port for direct connection with PC (management software included) and several expansion ports to external automations, indicator lights, limit swtch, programming keyboards, etc…

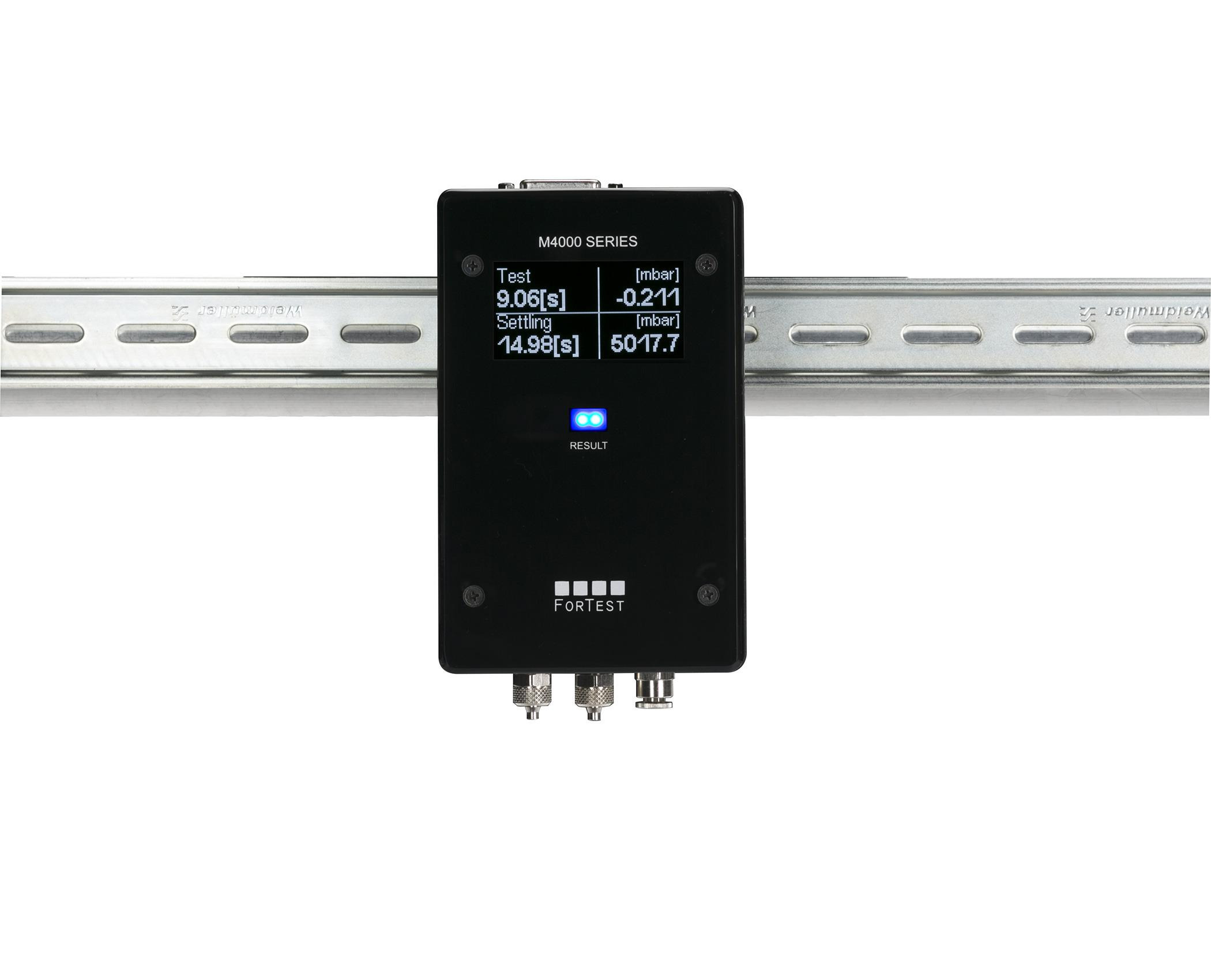

The black anodized aluminium case has been designed for fixing it to a Din bar, or to a panel, or finally, by pneumatic connectors, directly on the station in order to minimize the volume under test.

Thanks to its double pneumatics, ultra fast internal valves and small testing connectors, testing time is reduced by half compared to single-channel equipments.

Following a philosophy of fast assembling and quick start, T4890 has been designed to replace “do it yourself” testing stations, composed by pressure transducers, pneumatic groups and PLC, allowing to make a “plug and play”, without programming and installation costs; few minutes after assembling you will be fully operatives.

T4890 can communicate via protocol whose property is of ForTest, Canbus or Modbus.

Working scales go from -1 to 6 bar.

  • Black anodized aluminium case
  • 3mm. plexiglass front panel
  • Dimensions: L 90 mm, H 150 mm, P 70 mm
  • Weight 450gr
  • Measure resolution of pressure decay of 0,1 Pa (for equipment until 1 bar)
  • ForTest, Modbus or Canbus protocol
  • USB port for PC connection
  • Serial port for connection with printer or bar code reader
  • Oled high contrast display 2.5” 128x64 pixel
  • Frontal leds indicating Test running, Good, Reject
  • Inputs of Start, Abort, recall up to 7 programmes
  • Outputs of Test running, Good, Reject, DIscharge
  • Possibility to store 50 programmes for each channel
  • Fastening to Din bar, panel or directly on the station
  • External Pressure and flow regulators (on demand)
  • Pressure full scale: (mbar) : -1000, 200, 500, 1000, 2000, 6000
  • Power supply: 24 Vdc
  • Different pneumatics available for tubes (mm): 4x2,7, 6x4, 8x6
  • Test Gas: Hydrogen, Compressed air, Nitrogen

  • External exhaust solenoid with protection filter
  • External start button
  • Start pedal
  • Barcode reader
  • Adhesive label for printer 4500pcs
  • Aux signals extension cable
  • Air filter
  • M series manager software
  • Serial protocol
  • External 24 VDC power supply
  • Software Data Manager
  • Thermal printer with peel-off
  • Thermal printer without peel
  • Remote Start / Abort / Good / Reject
  • Air filter 5 micron
