Micro differential bench leak tester
Born to be integrated on benches with high production rates, it provides an hardaware that can be compared to that one of top series equipment, and with a measurement accuracy of not less than 0,1 Pa.
It finds its ideal applcations on pieces with a little volume and that can admit very low leakages and very high speed test.
For a volume of 3 cc testing time is of only 0,2”, with a visible leakage rate of 10 cc/h.
T4960 provides an innovative 2,5 “ high-resolution Oled display, a USB port for direct connection with PC (management software included) and several expansion ports to external automations, indicator lights, limit swtch, programming keyboards, etc…

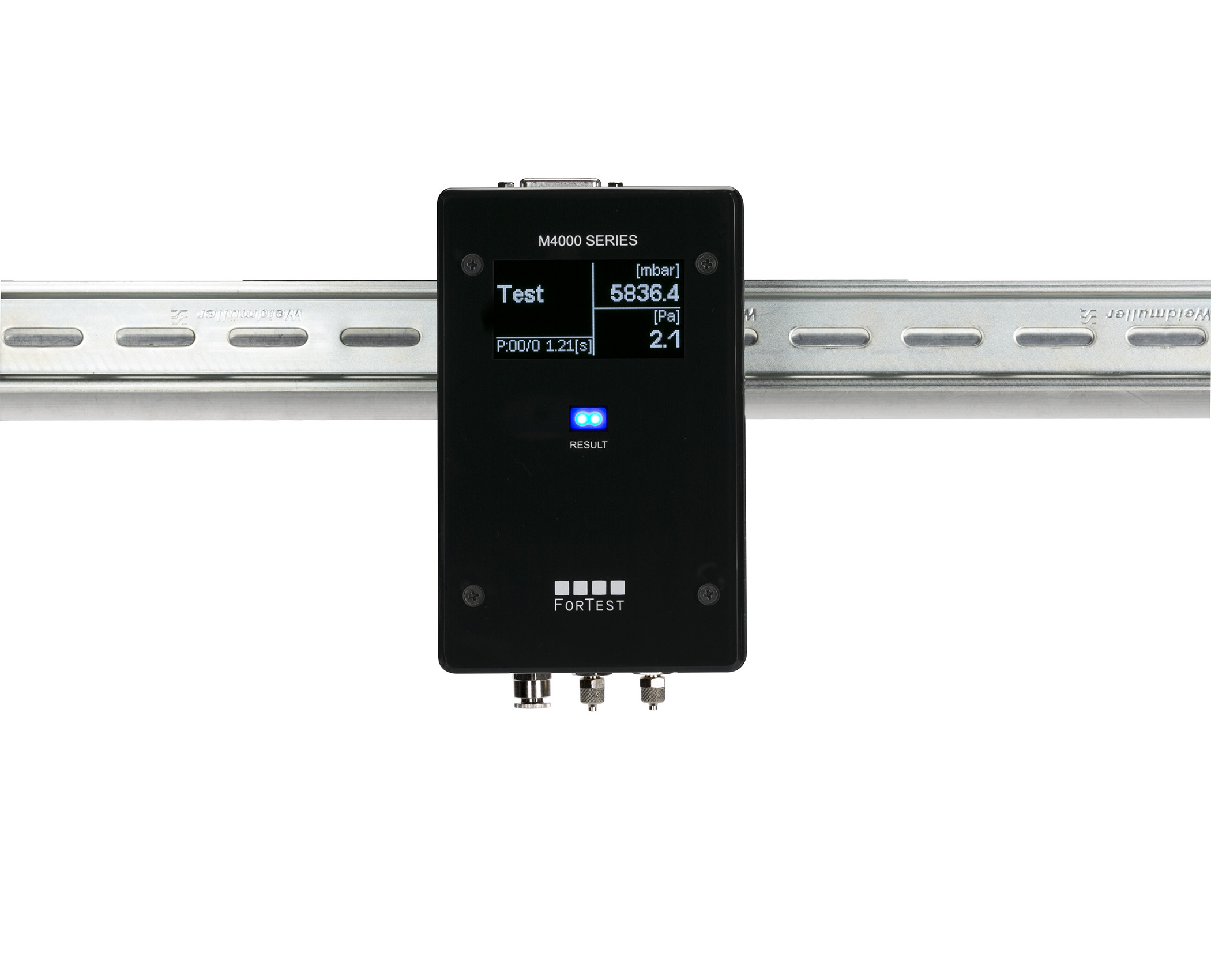

The black anodized aluminium case has been designed for fixing it to a Din bar, or to a panel, or finally, by pneumatic connectors, directly on the station in order to minimize the volume under test.
Thanks to optimized pneumatics, ultra fast internal valves and small testing connectors, testing time is extremely reduced providing at the same time a repeatable and reliable measure.
Following a philosophy of fast assembling and quick start, T4960 has been designed to replace “do it yourself” testing stations, composed by pressure transducers, pneumatic groups and PLC, allowing to make a “plug and play”, without programming and installation costs; few minutes after assembling you will be fully operatives.
T4960 can communicate via protocol whose property is of ForTest, Canbus or Modbus. Working scales go from -1 to 6 bar.
