T4990

Absolute pressure decay micro leak tester

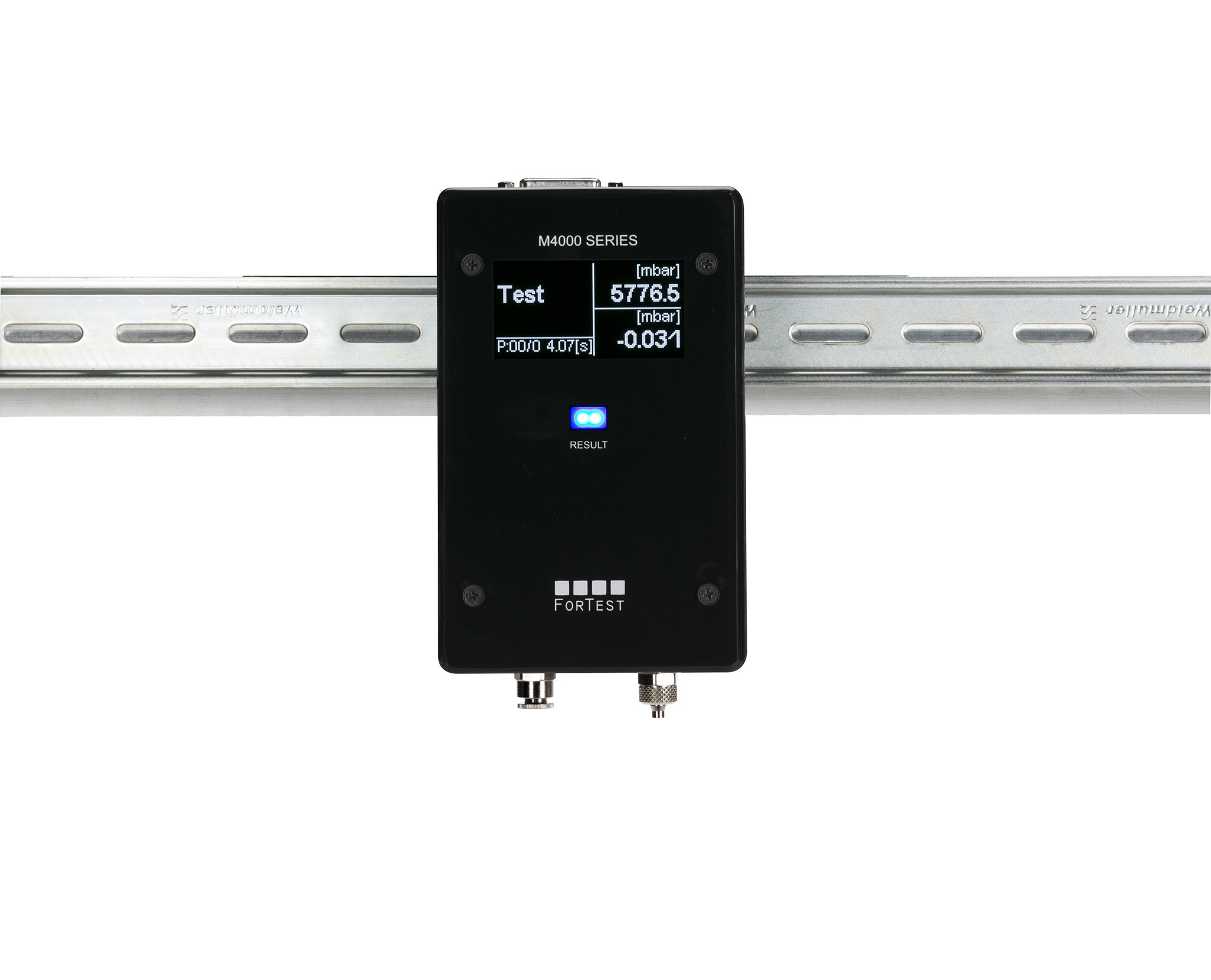

Bench air leak tester M4990 ForTest

Born to be integrated on automatic, semi automatic and rotating benches, it provides an hardware that can be compared to that one of top series equipments, and with a measurement accuracy of not less than 0,1 Pa.

T4990 provides an innovative 2,5 “ high-resolution Oled display, a USB port for direct connection with PC (management software included) and several expansion ports to external automations, indicator lights, limit swtch, programming keyboards, etc…

The black anodized aluminium case has been designed for fixing it to a Din bar, or to a panel, or finally, by pneumatic connectors, directly on the station in order to minimize the volume under test.

Thanks to optimized pneumatics, ultra fast internal valves and small testing connectors, testing time has minimized.

Following a philosophy of fast assembling and quick start, T4990 has been designed to replace “do it yourself” testing stations, composed by pressure transducers, pneumatic groups and PLC, allowing to make a “plug and play”, without programming and installation costs; few minutes after assembling you will be fully operatives.

T4990 can communicate via protocol whose property is of ForTest, Canbus or Modbus RTU. Working scales go from -1 to 6 bar.

  • Black anodized aluminium case
  • 3mm. plexiglass front panel
  • Dimensions: L 90 mm, H 150 mm, P 70 mm
  • Weight 450gr
  • Measure resolution of pressure decay of 0,1 Pa (for equipment until 1 bar)
  • ForTest, Modbus or Canbus protocol
  • USB port for PC connection
  • Serial port for connection with printer or bar code reader
  • Oled high contrast display 2.5” 128x64 pixel
  • Frontal leds indicating Test running, Good, Reject
  • Inputs of Start, Abort, recall up to seven programms
  • Outputs of Test running, Good, Reject, DIscharge
  • Possibility to store 100 programmes
  • Fastening to Din bar, panel or directly on the station
  • External Pressure and flow regulators (on demand)
  • Pressure full scale: (mbar) : -1000, 200, 500, 1000, 2000, 6000
  • Power supply: 24 Vdc
  • Different pneumatics available for tubes (mm): 4x2,7, 6x4, 8x6
  • Test Gas: Hydrogen, Compressed air, Nitrogen

  • External exhaust solenoid with protection filter
  • External start button
  • Barcode reader
  • Adhesive label for printer 4500pcs
  • Aux signals extension cable
  • Air filter
  • M series manager software
  • Serial protocol
  • External 24 VDC power supply
  • Software Data Manager
  • Thermal printer with peel-off
  • Thermal printer without peel
  • Remote Start / Abort / Good / Reject
  • Air filter 5 micron

  • High resolution measure - (STANDARD)
