T8960

Universal differential leak tester

Applications:

  Mechanical   Household Appliances
  Automotive   Medical
  Electronics   Packaging
  Foundry   Gas
  Pneumatics   Heating
  Refrigeration   Hydraulics
  Brakes   Alternative Energy
Air Leak Testing Equipment Differential T8960 ForTest

A touch of innovation
The new T8960 leak tester was designed to improve what was considered the best device in ForTest history, the M8990.

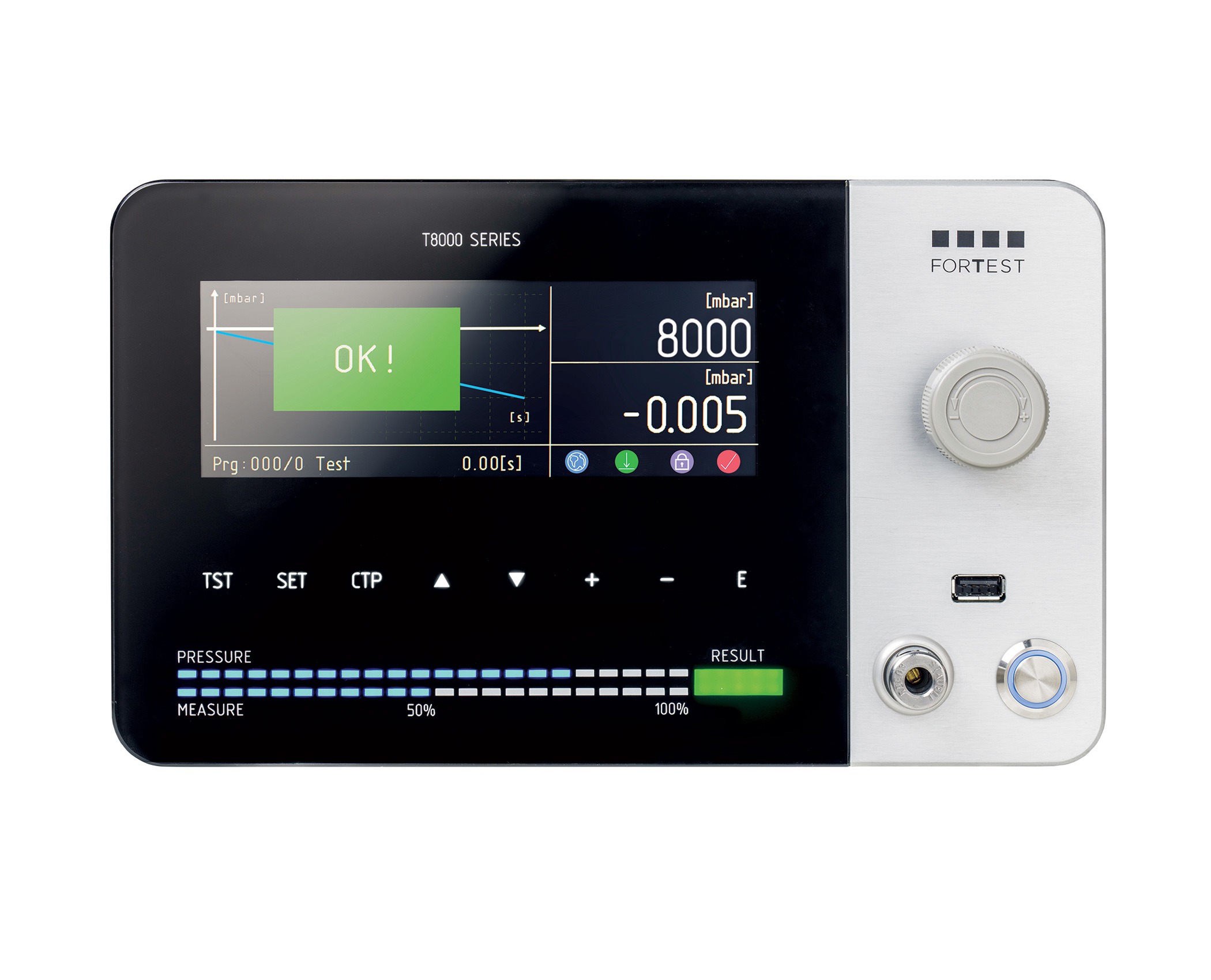

The new video controller “ForTest MMI” brought a superior level of human-machine interaction, thanks to an innovative capacitive panel in tempered glass, around a splendid 6.2” colour display.
Parameter programming is faster thanks to the new numerical keyboard integrated in the menu, and the big display makes clearer the view of the test cycle.
The main screen also enables interaction with shortcut functions, such as test program change, "smart" test archive menu and locking/unlocking using a password.




6.2” colour display Test graphic Full area touch screen Extended programming keyboard

Limitless connectivity.
The new T8960 equipment includes ports for the USB slave, RS232, RS485, Can bus and TTY. Assembly may also include an optional Ethernet port and a 26-pole connector with 4 inputs and 8 outputs, which are completely programmable, for interfacing with the external valves, safety barriers, switches, etc...
The front panel has a master USB port assembled on it for connection to a USB key to save the tests conducted, backup/restore parameters and upgrade tool firmware.
The connection to thermal printers, barcode/data-matrix readers and markers takes place automatically using an internal menu.



Usb key High power outputs RS232, RS485, Can, TTY Ethernet and auxiliary connector

Always better measurements.
By nature, differential technology enables a measurement sensitivity even better than absolute decay, guaranteeing a decay resolution of 0.1 Pa up to 6 bar testing.
The implementation of new pressure sensors, combined with the measurement section with centring technology in windows and double Faraday optical-isolated cage made further improvement of the tool performance.


Differential technology Centering technology in windows Resolution of 0.1 Pa up to 6 bar

Optimised pneumatic section.
Assembly of the latest generation solenoid valves has enabled a 50% increase in the filling speed compared to the previous model, maintaining reliability unaltered over time. Our tools do not require expensive maintenance in the pneumatic department. Actually, our objective is to make them increasingly reliable and long-lasting.



Filling speed +50% High strength against humidity No periodic maintenance

Innovative design.
What appears to be a simple design exercise, in fact hides an in-depth study to make use and understanding of the tool as simple as possible.
The front panel is made of a single sheet of tempered glass and aluminium, which makes it extremely easy to clean, making the T8960 suitable for use in the laboratory and on the production line.
The extensive internal menu are easy to understand and the graphic interface was designed only to display important information.
Everything is exactly where it should be.


User-friendly interface Easy to clean Use in sectors at 360°



Model 0-0,2 bar 0-0,5 bar 0-1 bar 0-2 bar 0-3 bar 0-6 bar 0-10 bar 0-15 bar
Accuracy Dp 0,5% RDG+3DGT 0,5% RDG+3DGT 0,5% RDG+3DGT 0,5% RDG+3DGT 0,5% RDG+3DGT 0,5% RDG+3DGT 0,5% RDG+3DGT 0,5% RDG+3DGT
Range of measurements Dp 0-65 mbar 0-65 mbar 0-65 mbar 0-65 mbar 0-65 mbar 0-65 mbar 0-650 mbar 0-650 mbar
Resolution Dp 0,001 mbar 0,001 mbar 0,001 mbar 0,001 mbar 0,001 mbar 0,001 mbar 0,01 mbar 0,01 mbar
Direct pressure accuracy 1,0%FS 1,0%FS 1,0%FS 1,0%FS 1,0%FS 1,0%FS 1,0%FS 1,0%FS
Direct pressure measurement range 0-FS 0-FS 0-FS 0-FS 0-FS 0-FS 0-FS 0-FS
Direct pressure relief 0,01 mbar 0,01 mbar 0,1 mbar 0,1 mbar 0,1 mbar 0,1 mbar 1  mbar 1 mbar
Accuracy measuring loss in cc/’ 1%RDG+0,01cc/min 1%RDG+0,01cc/min 1%RDG+0,03cc/min 1%RDG+0,03cc/min 1%RDG+0,03cc/min 1%RDG+0,03cc/min 1%RDG+0,03cc/min 1%RDG+0,03cc/min
Measurement range in cc/’ 0-10 cc/min 0-10 cc/min 0-10 cc/min 0-10 cc/min 0-10 cc/min 0-10 cc/min 0-10 cc/min 0-10 cc/min
Measured measurement resolution in cc/’ 0,01 cc/min 0,01 cc/min 0,01 cc/min 0,01 cc/min 0,01 cc/min 0,01 cc/min 0,01 cc/min 0,01 cc/min
Accuracy measure volume in cc 1,5%RDG+2cc/min 1,5%RDG+2cc/min 1,5%RDG+2cc/min 1,5%RDG+2cc/min 1,5%RDG+2cc/min 1,5%RDG+2cc/min 1,5%RDG+2cc/min 1,5%RDG+2cc/min
Volume range in cc 0-500 cc 0-500 cc 0-500 cc 0-500 cc 0-500 cc 0-500 cc 0-500 cc 0-500 cc
Volume measurement resolution in cc 0,1 cc/min 0,1 cc/min 0,1 cc/min 0,1 cc/min 0,1 cc/min 0,1 cc/min 0,1 cc/min 0,1 cc/min
Measure unit mbar, bar, psi, mmHg, mmH2O, Pa, HPa, cc/min, cc/h, pressure/s.
Dimensions 270X160X300 mm
Weight 8 kg
Display size 800x280 pixel
Operating temperature range 5-40 °C
RS232 ports 2
RS485 ports 1
“master” usb port 1
“slave” usb port 1
Ethernet port Optional
I/O signals Start, Stop, Filling, Test, Good, Reject, 4BCD
Auxiliary I/O signals (optional) 8 output programmable, 4 input programmable, 4BCD
Number of programs 300
 Test archive memory Advanced
Password block Yes
Program name Yes, 16 characters
Reference normatives EN 61010-1, EN61326-1 / EN61326/A1, EN61000-3-2 / EN61000-3-2/A14, EN61000-3-3 / EN61000-3-3/A1, EN61000-4-2 / EN61000-4-2/A1, EN61000-4-3 / EN61000-4-3/A1 / EN61000-4-3/A2, EN61000-4-4, EN61000-4-5, EN61000-4-11, EN1779
