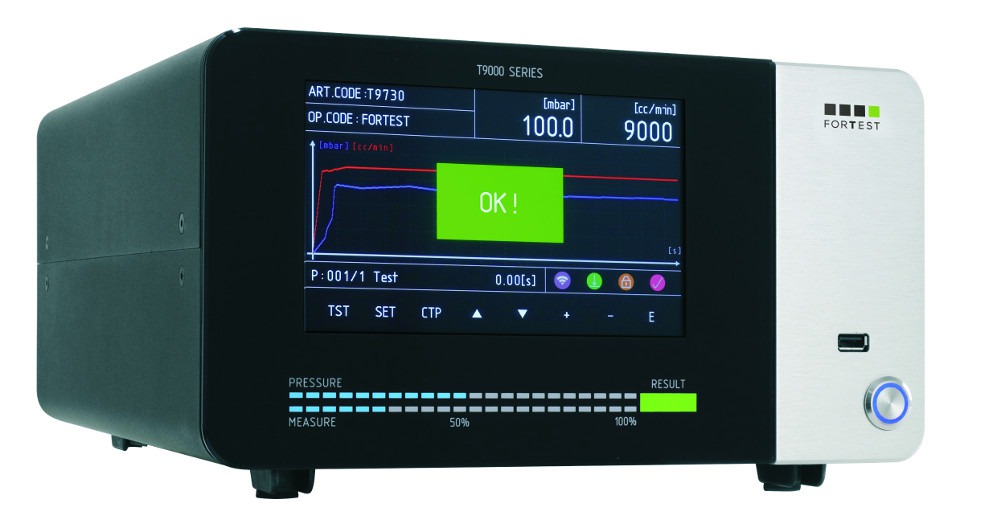

T9730

Continuous measurement high performance flow tester


Flow measurement with “Coriolis” sensor
Thanks to use of technology based on the “Coriolis” effect, T9730 is among the leaders of flow leak testing in terms of precision and linearity of the measurement.
This particular technology was designed to guarantee high performance, short response time and high level of immunity to noise, and is exclusive to the ForTest T9000 series.
Other than the classic flow measurement, the tool also has other ways of making it as versatile as possible in its category: ascent and descent ramps, opening tests and burst testing.
Another separate function is the "continuous measurement", i.e. a test with infinite times allowing adjustment of the taps and part repairs in real time.
The tool also avails of an intelligent pressure adjustment, which uses the automatic pressure regulator to continuously adjust the test pressure based on the variation in load loss, to ensure the reading is as stable and repetitive as possible.



High performance “Coriolis” sensor Multiple operating modes Intelligent pressure adjustment

Advanced interface.
For us, the T9000 series is the most technologically forward of measurement systems, equipped with an advanced interface, useful for analysis and research during the prototyping or pre-series phase, as well as for production line testing.
The big, 7” colour display set in a capacitive glass panel allows total interaction with the internal menus and the main screen. The "smart" testing archive contains daily and monthly analysis functions and those specifically for each test program, to keep the level of quality of your products under control.


7” full touch screen display Advanced analysis capacity "Smart" testing archive

Limitless connectivity.
The new T9730 equipment includes ports for the USB slave, RS232, RS485, Profinet, EtherNet IP and EtherCAT. Assembly may also include an optional Ethernet port and a 26-pole connector with 4 inputs and 8 outputs, which are completely programmable, for interfacing with the external valves, safety barriers, switches, etc...
The front panel has a master USB port assembled on it for connection to a USB key to save the tests conducted, backup/restore parameters and upgrade tool firmware.
The connection to thermal printers, barcode/data-matrix readers and markers takes place automatically using an internal menu.


Usb key High power outputs RS232, RS485, Can, TTY Ethernet and auxiliary connector

Top category technology.
We decided not to make compromises when equipping the T9730, assembling the best components currently on the market, such as the piezoelectric electronic regulator which guarantees stable and repetitive adjustment, or The "Coriolis" sensor, incredibly accurate, or the solid-state sensor with a vast reading range, or the specific valves for this model, with a life estimated in tens of millions of cycles.
All these advantages give never before seen precision performance, stability and accuracy.
Measurement resolution starts at 1 cc / min based on the scale end, ranging from 20 to 200 l / min, with maximum pressures of 2 bar

Automatic pressure regulator Resolution 1 cc/min Measurement up to 20,000 cc/min


Made to measure pneumatic section.
To avoid overheating due to long activation times of the filling circuit, we have designed particular, high capacity pneumatic valves, which not only work in hot temperatures, but also quickly fill the piece being tested, making the T9730 also suitable for testing on parts with significant volumes.
All of the above, while maintaining ForTest's historic reliability.


Heat-proof pneumatic valves High filling speed No periodic maintenance




Model 0-0,5 bar 0,5-6 bar 0-200 cc/min 0-5000 cc/min 0-10000 cc/min 0-20000 cc/min 0-50000 cc/min 0-100000 cc/min 0-200000 cc/min
Flow accuracy 1 - - 1% RDG+0,1%FS 1% RDG+0,1%FS 1% RDG+0,1%FS 1% RDG+0,1%FS 1% RDG+0,5%FS 1% RDG+0,5%FS 1% RDG+0,5%FS
Flow measurement range 1 - - 0-FS 0-FS 0-FS 0-FS 0-FS 0-FS 0-FS
Flow resolution - - 0,01 cc/min 1 cc/min 1 cc/min 1 cc/min 10 cc/min 100 cc/min 500 cc/min
Filling pressure accuracy 0,5%FS 0,5%FS - - - - - - -
Filling pressure measurement range 0-FS 0-FS - - - - - - -
Filling pressure resolution 0,01 mbar 0,1 mbar - - - - - - -
Leak measurement accuracy in cc/’ - - - - - - - - -
Leak measurement range in cc/’ - - - - - - - - -
Leak measurement resolution in cc/’ - - - - - - - - -
Volume measurement accuracy in cc/’ - - - - - - - - -
Volume measurement range in cc/’ - - - - - - - - -
Volume measurement resolution in cc/’ - - - - - - - - -
Unit of measurement mbar, bar, psi, mmHg, mmH2O, Pa, HPa, cc/min, cc/h, l/h, l/min.
Dimensions 300x160x350 mm
Weight 10 kg
Display dimensions 800x480 pixel
Working temperature range 5-40 °C
Port RS232 2
Port RS485 1
“Master” USB port 1
“Slave” USB port 1
Ethernet port Optional
I/O signals Start, Stop, Filling, Test, Good, Reject, 4BCD
Auxiliary I/O signals (optional) 8 output programmable, 4 input programmable, 4BCD
Number of programs 300
Test archive memory Advanced
Lock with password Yes
Program name Yes, 16 characters
Note The resolution to be considered for accuracy is always 1 Pa.

Reference Normatives: EN 61010-1, EN61326-1 / EN61326/A1, EN61000-3-2 / EN61000-3-2/A14, EN61000-3-3 / EN61000-3-3/A1, EN61000-4-2 / EN61000-4-2/A1, EN61000-4-3 / EN61000-4-3/A1 / EN61000-4-3/A2, EN61000-4-4, EN61000-4-5, EN61000-4-11, EN1779

  • The resolution for uncertainty calculation is 1 Pa up to 10 bar.
  • The flow measurement of the flow meters is of mass type and referred to the reference condition of 0°C - 1013,25mbar.
  • Flow measurement of leak test equipment is volumetric.
  • Accuracy data are referred to and guaranteed under laboratory calibration conditions.
  • The accuracy of the flow measurement is referred up to 2 bar, for higher pressures variations are possible depending on the characteristics of the model.
  • For measurement scales greater than the limits indicated, the accuracy will be specified in the offer phase.

1: can change according to the scale of the Pressure


  • External exhaust solenoid with protection filter
  • External start button
  • External start/abort pushbutton
  • External pushbutton 4 programs selection
  • Start pedal
  • Barcode reader
  • Adhesive label for printer 4500pcs
  • Aux signals extension cable
  • Air filter
  • Staubli male connector
  • Precision micrometer nozzle
  • Micrometer nozzle
  • M series manager software
  • TTY
  • Serial protocol
  • PC serial cable owner - M Series
  • External temperature probe
  • MIXER-07
  • Software Data Manager
  • Staubli female fitting
  • Thermal printer with peel-off
  • Thermal printer without peel
  • Adapter cable AUX M Series - ET Series
  • Remote Start / Abort / Good / Reject
  • Air filter 5 micron

  • Pneumatic filling fast - (STANDARD)
  • Frontal connector for Staubli calibrated leak
  • Frontal precision pressure regulator
  • Electronic pressure Regulator
  • Auto zero primary pressure circuit
  • Pre-Filling
  • Waiting Primary pressure reading
  • Secondary Output of Waste (third result)
  • Leak Analog Output
  • I/O 24 Vdc expansion signal card
  • Bi-manual logic Start Input
  • Ethernet plug/TCP-IP
  • Active USB port
  • WI-FI connection
  • Radio remote control selection Kit
  • High resolution measure - (STANDARD)
