Micro differential leak testing
Differential technology meets miniaturized dimensions in the new K3060, suitable for high-productivity automatic lines for micro-volume testing.
Application Sectors
Compact Design for Industrial Automation
K3060 represents the latest evolution of miniaturized differential leak testing equipment designed for industrial automation. With dimensions of 110x110x110 mm, it is designed to integrate easily into automatic lines, allowing positioning close to the part under test. This configuration reduces parasitic volume, optimizing cycle times.
Performance on Micro Volumes
The low energy consumption internal micro-valves are specifically designed for filling small volumes, up to a maximum of 50 cc. This feature makes the equipment particularly suitable for ultra-fast tests on micro volumes in high-productivity automatic machines.
Construction and User Interface

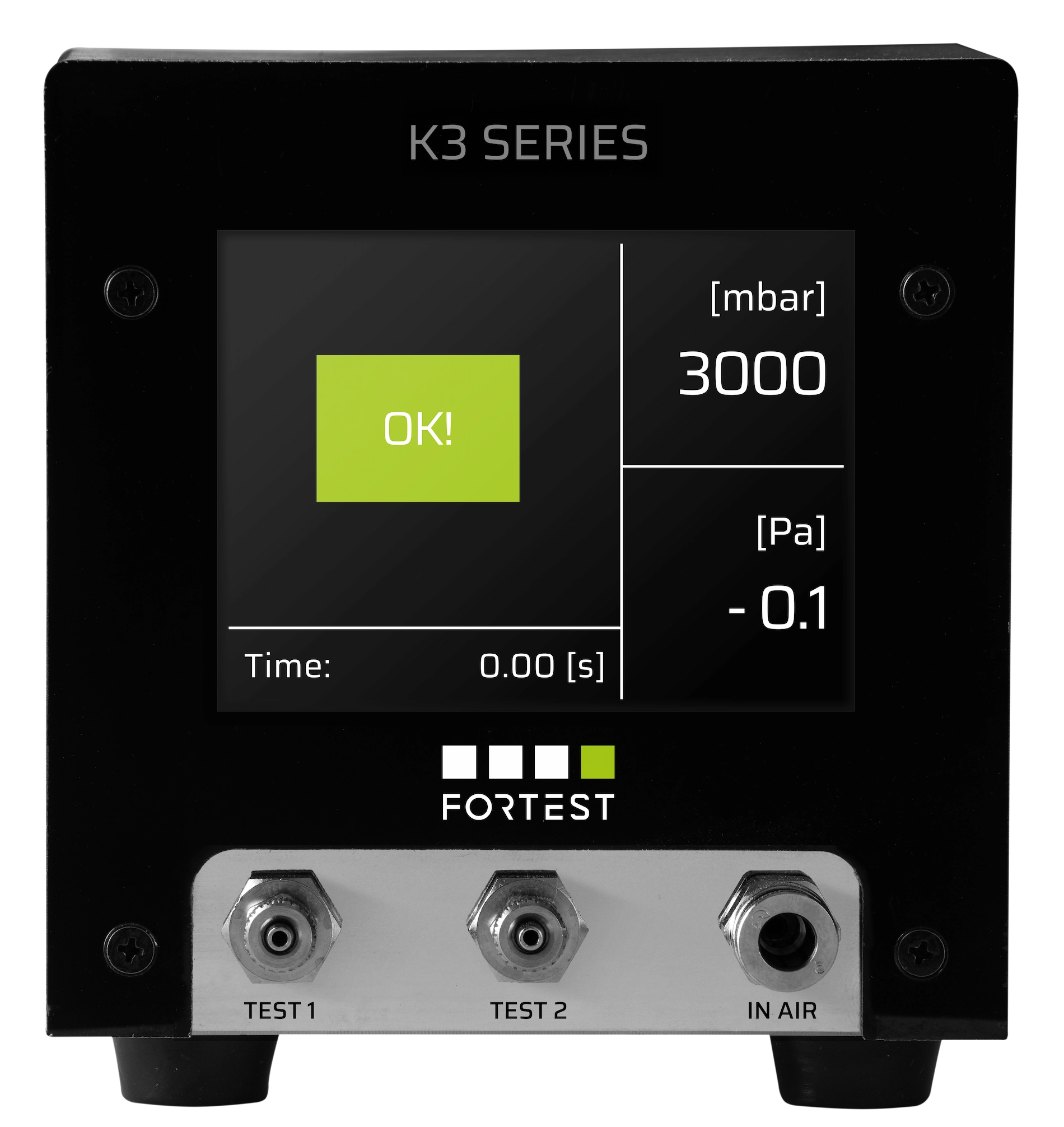

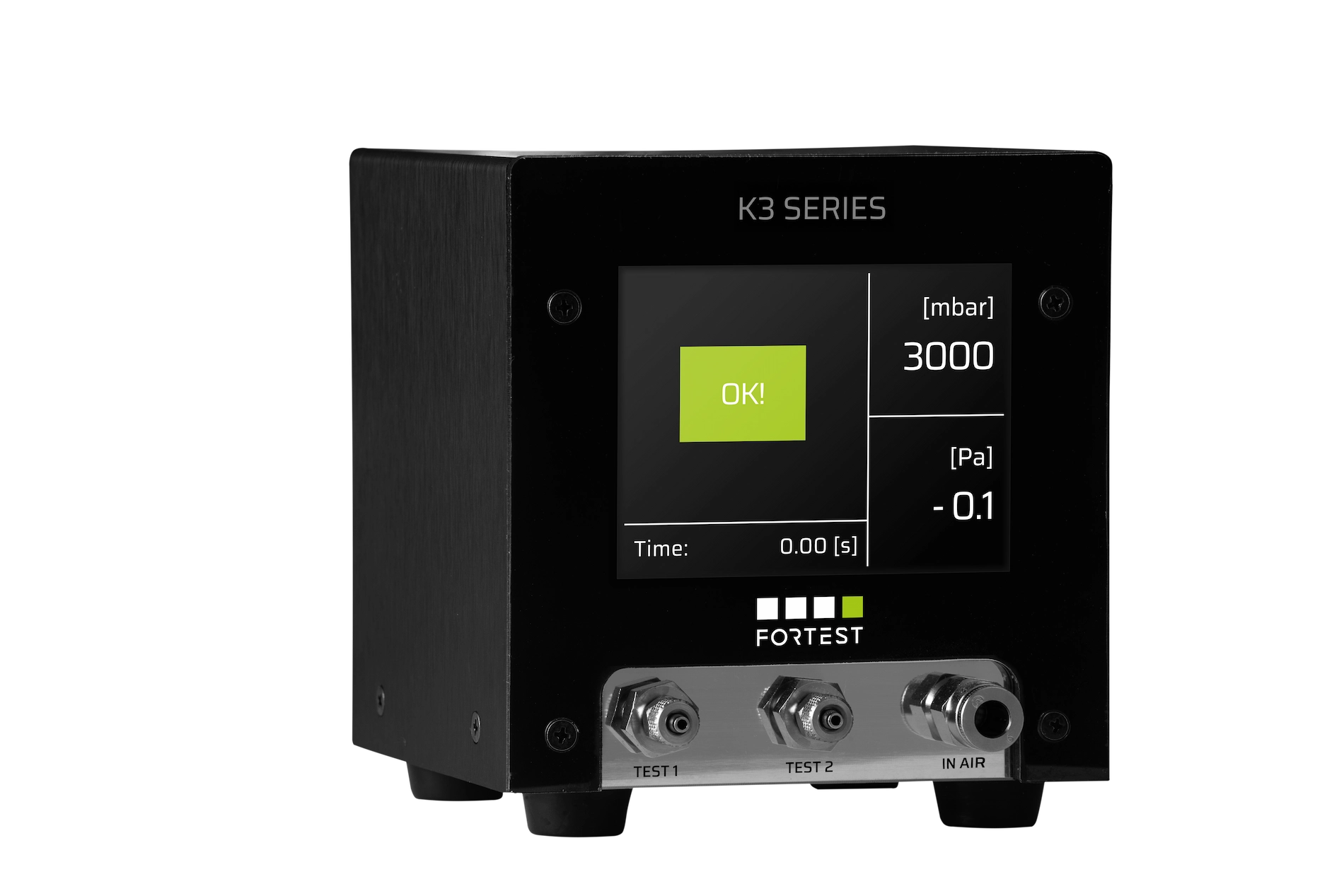

Despite its compact dimensions, the anodized aluminum chassis and plexiglass panel integrate a 3.5″ color display. The interface ensures immediate monitoring of test operations.
Connectivity and Communication
The equipment comes standard with multiple connectivity options: 24Vdc I/O connectors, USB, Ethernet (with support for Modbus-RTU or ForTest communication protocols) and Bluetooth. The operating measurement range is between -1 and 10 bar.
Programming and Usage Methods
Programming can be performed using dedicated PC software (via LAN, USB or RS232 connection) or through USB stick. A stand-alone mode is also available that uses a simulated keyboard and digital I/O signals for Start command, cycle Abort, program recall and result output management.
| Model | 0-1 bar e -1-0 bar | 1-2 bar | 2-6 bar | 6-10 bar | |||
|---|---|---|---|---|---|---|---|
| Accuracy Dp | 0,5% RDG+3DGT | 0,5% RDG+3DGT | 0,5% RDG+3DGT | 0,5% RDG+3DGT | |||
| Range of measurements Dp | 0-65 mbar | 0-65 mbar | 0-65 mbar | 0-650 mbar | |||
| Resolution Dp | 0,001 mbar | 0,002 mbar | 0,005 mbar | 0,01 mbar | |||
| Direct pressure accuracy | 0,5%FS | 0,5%FS | 0,5%FS | 0,5%FS | |||
| Direct pressure measurement range | 0-FS | 0-FS | 0-FS | 0-FS | |||
| Direct pressure resolution | 0,1 mbar | 0,1 mbar | 0,1 mbar | 1 mbar | |||
| Accuracy measuring loss in cc/’ | 1%RDG+0,03cc/min | 1%RDG+0,03cc/min | 1%RDG+0,03cc/min | 1%RDG+0,03cc/min | |||
| Measurement range in cc/’ | 0-10 cc/min | 0-10 cc/min | 0-10 cc/min | 0-10 cc/min | |||
| Measured measurement resolution in cc/’ | 0,01 cc/min | 0,01 cc/min | 0,01 cc/min | 0,01 cc/min | |||
| Accuracy measure volume in cc | - | - | - | - | |||
| Volume range in cc | - | - | - | - | |||
| Volume measurement resolution in cc | - | - | - | - | |||
| measure unit | mbar, bar, psi, mmHg, mmH2O, Pa, HPa, cc/min, cc/h, pressure/s. | ||||||
| Dimensions | L:110 H:110 l:110 mm | ||||||
| Weight | 1 Kg | ||||||
| Display size | 3,5” - 320x240 pixel | ||||||
| Operating temperature range | 5-40 °C | ||||||
| RS232 ports | 1 | ||||||
| RS485 ports | 1 | ||||||
| “master” usb port | 1 | ||||||
| “slave” usb port | 0 | ||||||
| Ethernet port | Optional (protocolli ForTest o Modbus RTU) | ||||||
| I/O signals | Start, Stop, Filling, Test, Good, Reject, 3BCD | ||||||
| Auxiliaries I/O signals (optional) | - | ||||||
| Number of programs | 100 | ||||||
| Test archive memory | No | ||||||
| Password block | No | ||||||
| Program name | No | ||||||
| Note |
The resolution to be considered for accuracy is always 1 Pa. Reference Normatives: EN 61010-1, EN61326-1 / EN61326/A1, EN61000-3-2 / EN61000-3-2/A14, EN61000-3-3 / EN61000-3-3/A1, EN61000-4-2 / EN61000-4-2/A1, EN61000-4-3 / EN61000-4-3/A1 / EN61000-4-3/A2, EN61000-4-4, EN61000-4-5, EN61000-4-11, EN1779
|
||||||
Datasheet K3060 ForTest – ITALIANO – REV.1 – PDF
Communicatin Protocol ForTest – PDF
Communication Protocol Modbus RTU – PDF
Data mapping Profinet ForTest – Revision-D – PDF
GSDML File ForTest – Revision-D – ZIP
Data mapping Profinet ForTest – Revision-H – PDF
GSDML File ForTest – Revision-H – ZIP
Data mapping EtherNet/IP ForTest – Revision-H – PDF
ESD File ForTest – Revision-H – EDS
Data mapping EtherCAT ForTest – Revision-H – PDF
XML File ForTest – Revision-H – XML
USB Drivers for Windows OS – Windows x86/x64 – ZIP
(*) Ethernet-based interfaces with standardized industrial communication protocols are optional and not included by default in the instrument. Furthermore, depending on the availability of embedded modules that support these protocols, it is necessary to refer to the specific model and hardware revision installed, as the modules are integrated based on availability at the time of order.
