Micro dual-channel absolute decay air leak tester
K3890 is the new miniaturized dual-channel equipment, designed to double productivity on automatic testing lines for parts with small volumes.
Application Sectors
Miniaturized Bi-Channel Innovation

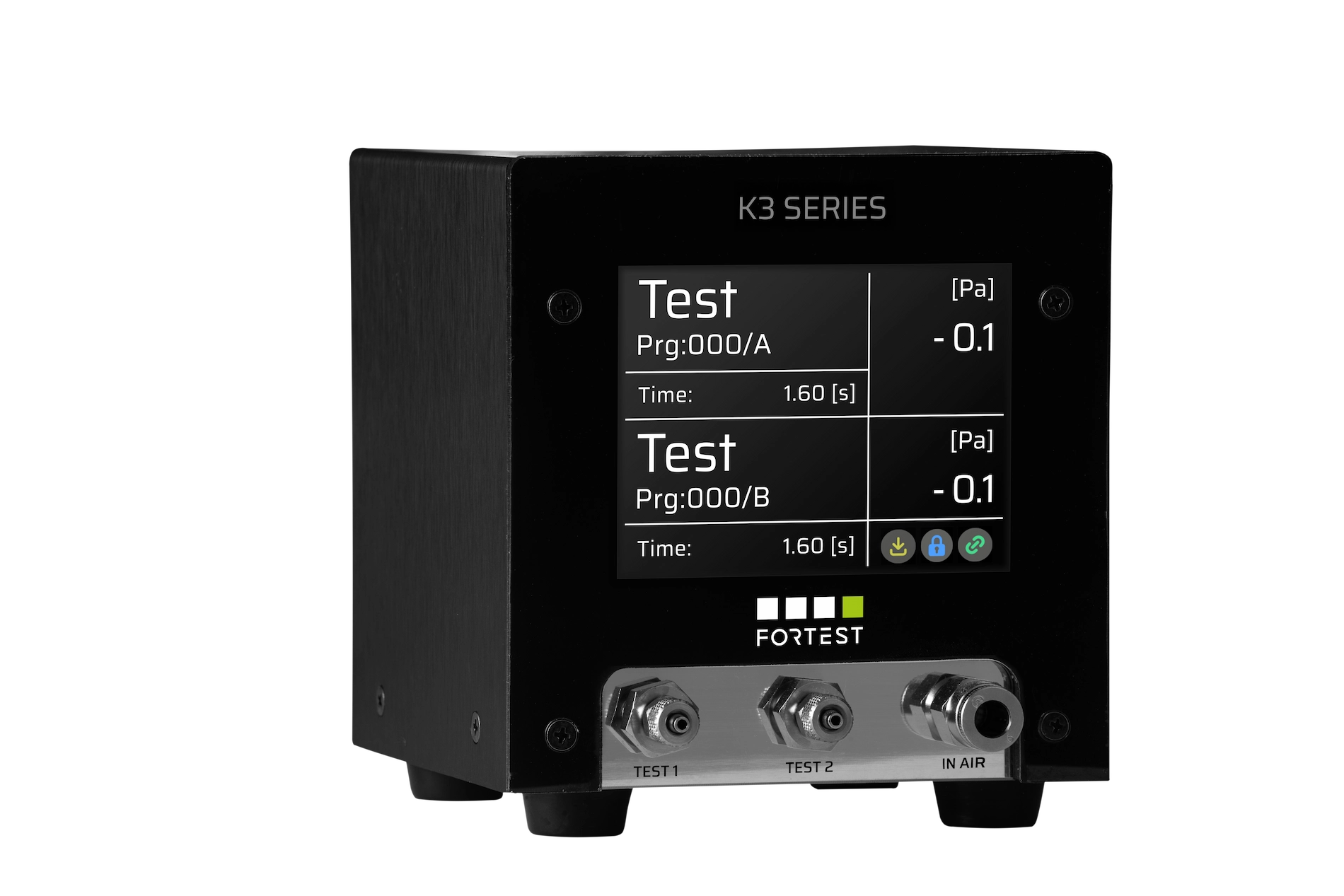

The K3890 represents the latest frontier in absolute pressure decay leak testing equipment. Specifically designed for automation, it integrates bi-channel technology in an ultra-compact format, ideal for modern production challenges.
Direct Integration and Reduced Cycle Times
Thanks to its extraordinarily compact dimensions (110×110×110 mm), the equipment can be installed directly in proximity to the workpiece. This proximity minimizes parasitic volumes, ensuring a drastic reduction in test times and greater precision.
Performance on Micro-Volumes
Equipped with internal micro-valves with low consumption, the K3890 excels in filling reduced volumes (up to 50 cc). It is the perfect solution for extremely fast leak testing cycles on high-productivity automatic machines.
Robust Design and Integrated Interface

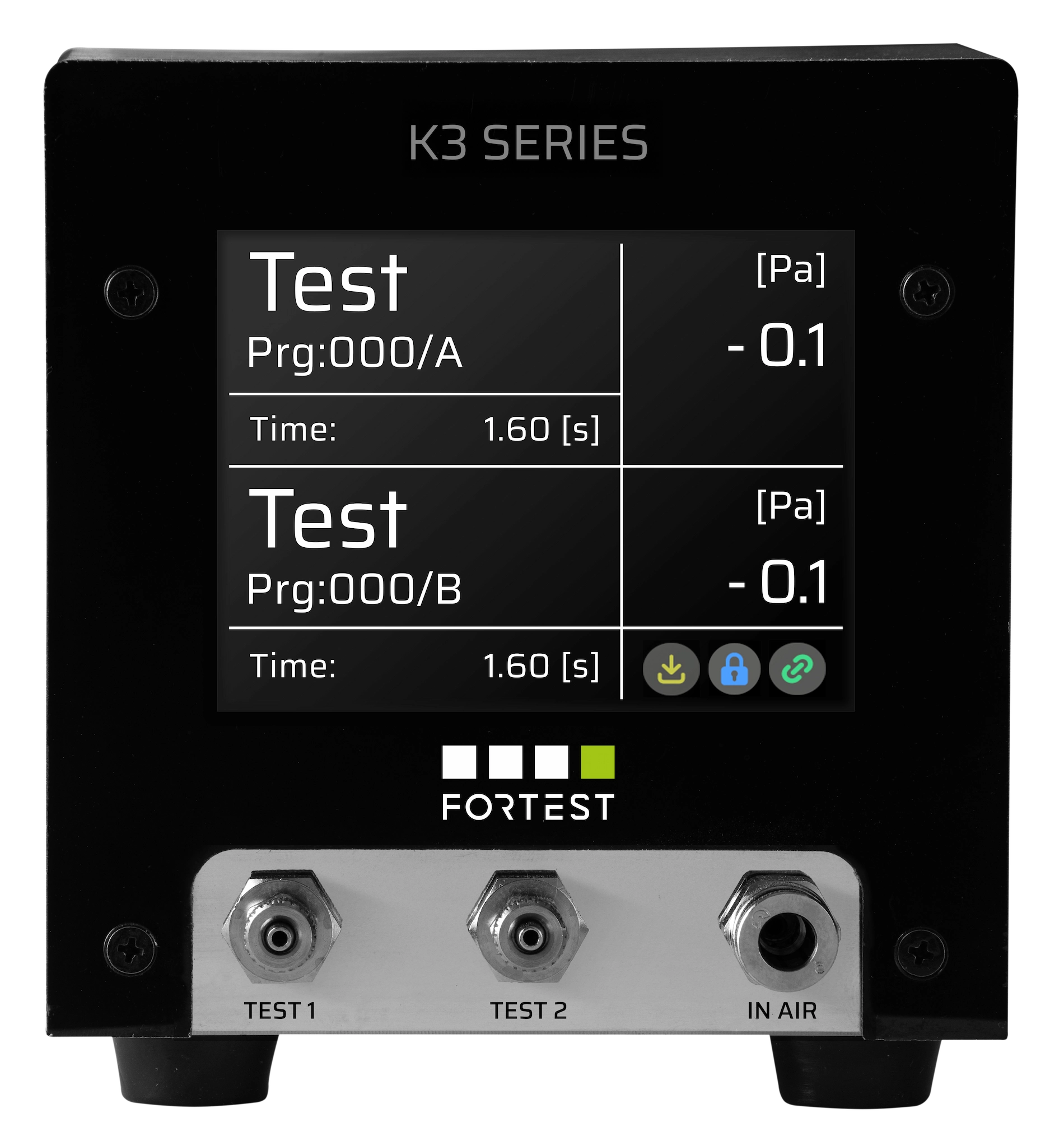

The anodized aluminum chassis with plexiglass front panel houses a 3.5″ color display. Despite its “micro-unit” dimensions, the equipment does not compromise on visual clarity and the robustness required in industrial environments.
Connectivity and Industry 4.0 Protocols
The K3890 offers a complete standard equipment package: USB connections, Ethernet TCP/IP (Modbus-RTU or ForTest), plus wireless Bluetooth module. This ensures perfect digital integration with any supervision system.
Flexible Management and Programming
The configuration can be performed through dedicated PC software or USB flash drive. The equipment can also operate in stand-alone mode, using digital I/O signals for cycle control (Start/Abort) and management of results and programs.
Measurement Range
To cover a wide spectrum of industrial applications, from vacuum testing to standard pressures, the available measurement scales range from -1 to 10 bar.
| Model | 0-1 bar e -1-0 bar | 1-2 bar | 2-6 bar | 6-10 bar |
|---|---|---|---|---|
| Accuracy Dp | 0,5% RDG+3DGT | 0,5% RDG+3DGT | 0,5% RDG+3DGT | 0,5% RDG+3DGT |
| Range of measurements Dp | 0-65 mbar | 0-65 mbar | 0-65 mbar | 0-650 mbar |
| Resolution Dp | 0,001 mbar | 0,002 mbar | 0,005 mbar | 0,01 mbar |
| Direct pressure accuracy | 0,5%FS | 0,5%FS | 0,5%FS | 0,5%FS |
| Direct pressure measurement range | 0-FS | 0-FS | 0-FS | 0-FS |
| Direct pressure resolution | 0,1 mbar | 0,1 mbar | 0,1 mbar | 1 mbar |
| Accuracy measuring loss in cc/’ | 1%RDG+0,03cc/min | 1%RDG+0,03cc/min | 1%RDG+0,03cc/min | 1%RDG+0,03cc/min |
| Measurement range in cc/’ | 0-10 cc/min | 0-10 cc/min | 0-10 cc/min | 0-10 cc/min |
| Measured measurement resolution in cc/’ | 0,01 cc/min | 0,01 cc/min | 0,01 cc/min | 0,01 cc/min |
| Accuracy measure volume in cc | - | - | - | - |
| Volume range in cc | - | - | - | - |
| Volume measurement resolution in cc | - | - | - | - |
| measure unit | mbar, bar, psi, mmHg, mmH2O, Pa, HPa, cc/min, cc/h, pressure/s. | |||
| Dimensions | L:110 H:110 l:110 mm | |||
| Weight | 1 Kg | |||
| Display size | 3,5” - 320x240 pixel | |||
| Operating temperature range | 5-40 °C | |||
| RS232 ports | 1 | |||
| RS485 ports | 1 | |||
| “master” usb port | 1 | |||
| “slave” usb port | 0 | |||
| Ethernet port | Optional (protocolli ForTest o Modbus RTU) | |||
| I/O signals | Start, Stop, Filling, Test, Good, Reject, 3BCD | |||
| Auxiliaries I/O signals (optional) | - | |||
| Number of programs | 100 | |||
| Test archive memory | No | |||
| Password block | No | |||
| Program name | No | |||
| Note |
The resolution to be considered for accuracy is always 1 Pa. Reference Normatives: EN 61010-1, EN61326-1 / EN61326/A1, EN61000-3-2 / EN61000-3-2/A14, EN61000-3-3 / EN61000-3-3/A1, EN61000-4-2 / EN61000-4-2/A1, EN61000-4-3 / EN61000-4-3/A1 / EN61000-4-3/A2, EN61000-4-4, EN61000-4-5, EN61000-4-11, EN1779
|
|||
Datasheet K3890 ForTest – ITALIANO- REV.1 – PDF
Communicatin Protocol ForTest – PDF
Communication Protocol Modbus RTU – PDF
Data mapping Profinet ForTest – Revision-D – PDF
GSDML File ForTest – Revision-D – ZIP
Data mapping Profinet ForTest – Revision-H – PDF
GSDML File ForTest – Revision-H – ZIP
Data mapping EtherNet/IP ForTest – Revision-H – PDF
ESD File ForTest – Revision-H – EDS
Data mapping EtherCAT ForTest – Revision-H – PDF
XML File ForTest – Revision-H – XML
USB Drivers for Windows OS – Windows x86/x64 – ZIP
(*) Ethernet-based interfaces with standardized industrial communication protocols are optional and not included by default in the instrument. Furthermore, depending on the availability of embedded modules that support these protocols, it is necessary to refer to the specific model and hardware revision installed, as the modules are integrated based on availability at the time of order.
