Mini absolute decay leak tester
K5990 is the new compact entry-level equipment with high performance. Designed for the medical sector, it also finds application in all other sectors such as automotive, hydraulic, pneumatic and home appliance.
Application Sectors
Entry-Level Solution without Compromise
The K5990 is designed for those seeking an absolute pressure decay leak testing equipment that is compact and high-performing. It represents the perfect balance between ease of use and the precision typical of ForTest’s high-end instruments.
Ultra-Compact and Lightweight Design
With extremely reduced dimensions (160x140x180 mm) and a weight of only 2.5 kg, the K5990 is the ideal solution for manual testing stations. It is particularly suitable for the medical sector and for all applications where space is limited but test quality is a priority.
Touch Interface and High Resistance

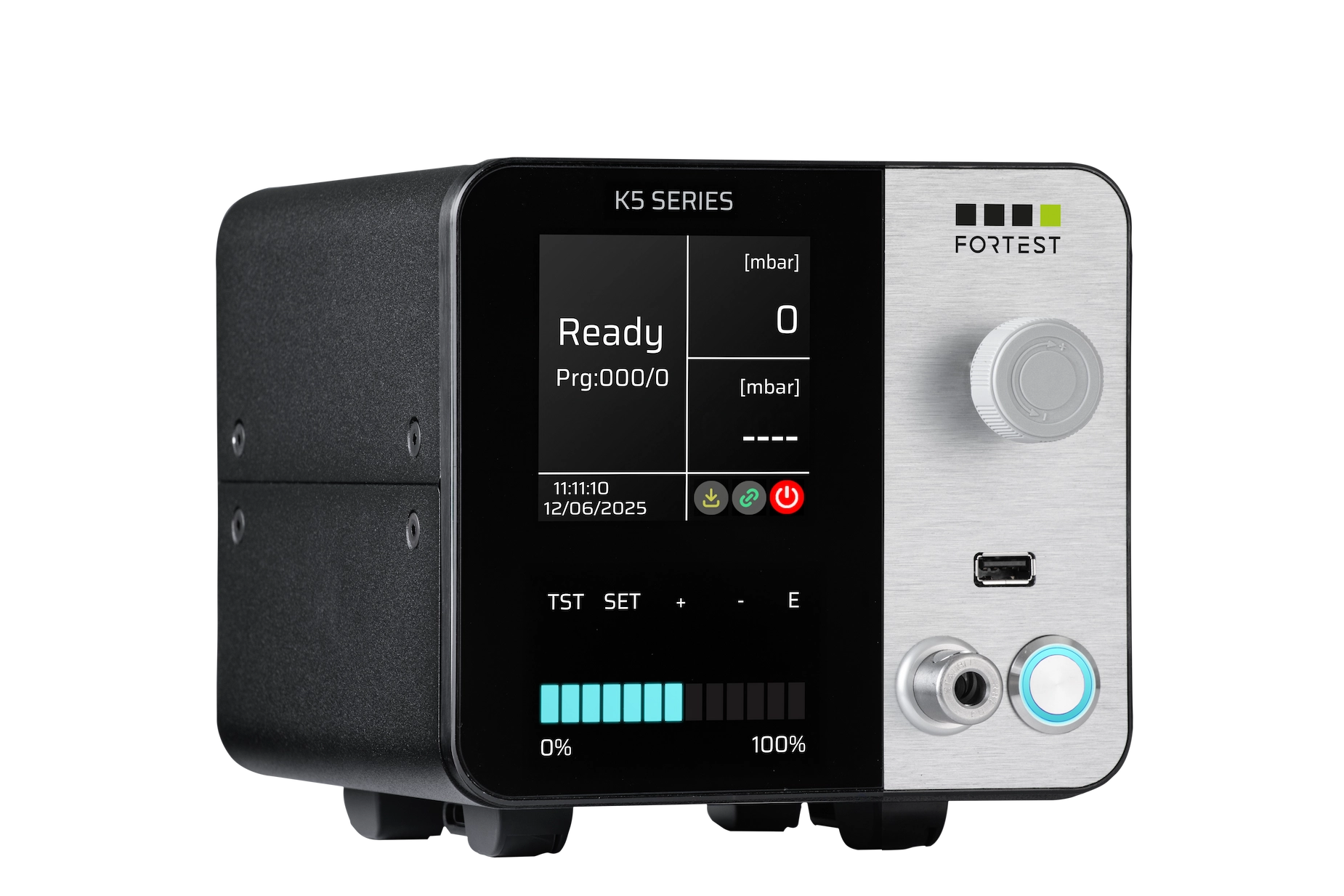

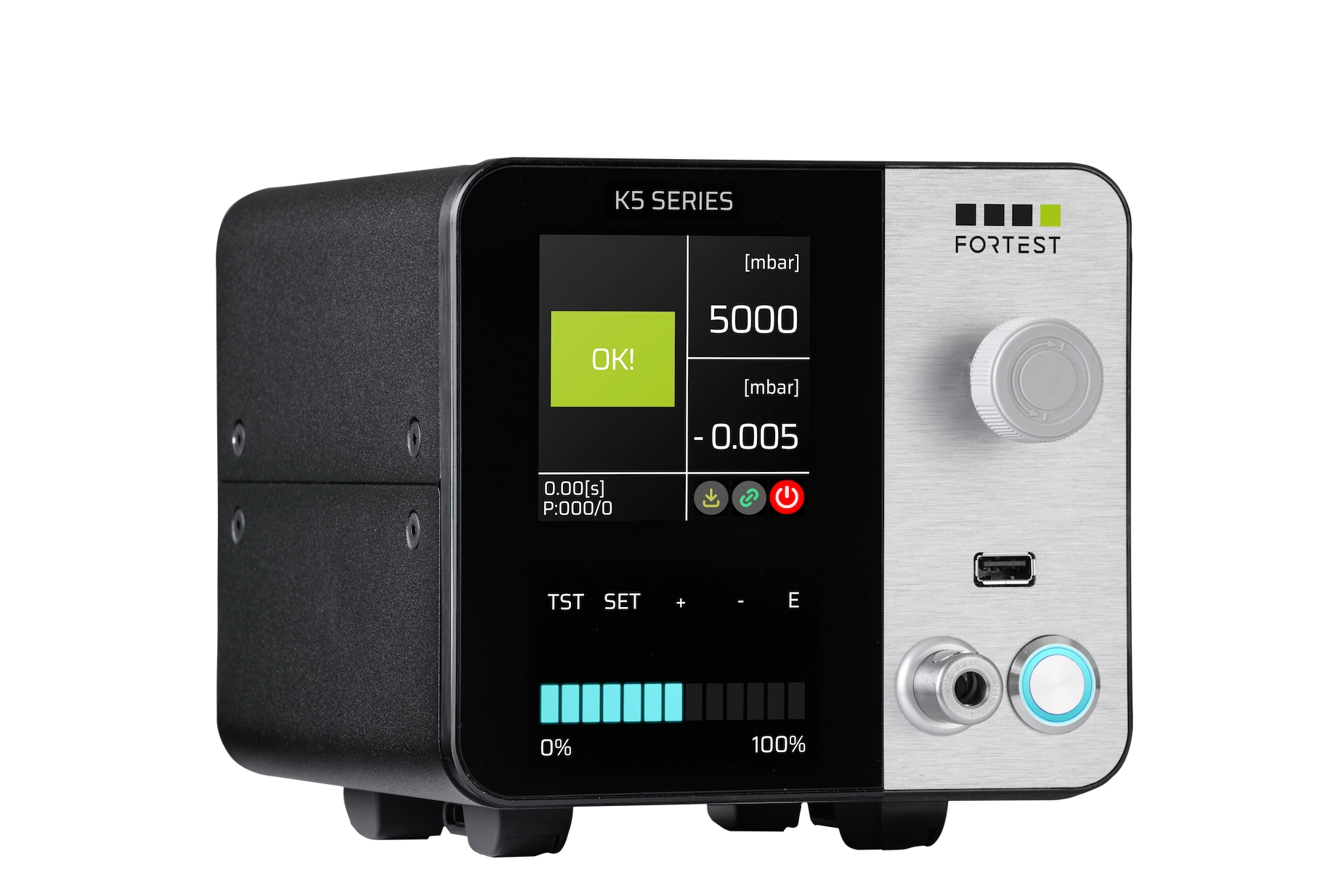

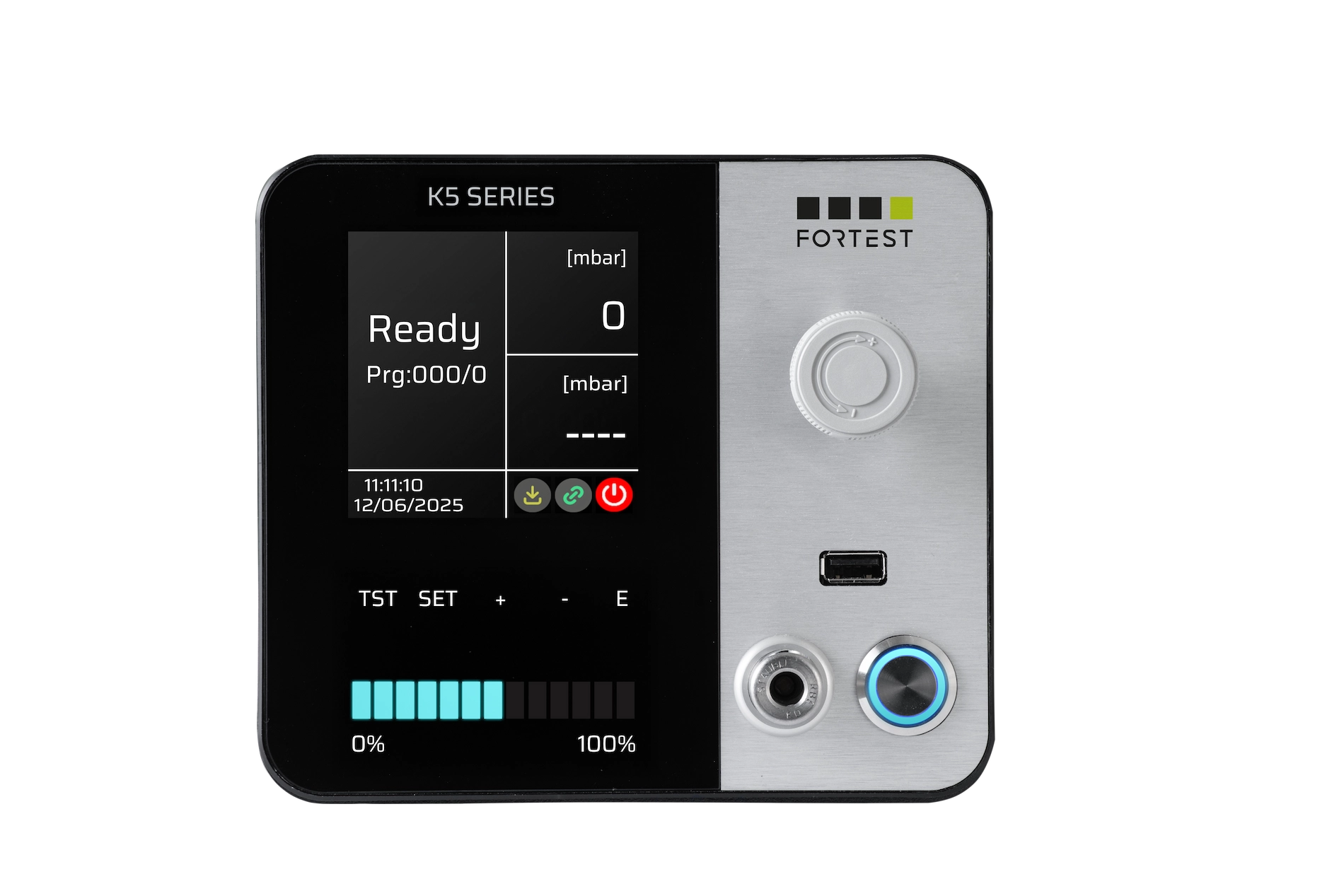

Despite its size, it offers an advanced interface: 3.5″ color display with capacitive touch-screen, dynamic LED bar and backlit keyboard. Everything is protected by an elegant tempered glass panel, resistant and easy to clean.
Technical Equipment and Programs
The equipment includes as standard the Stäubli®® fitting for connecting calibrated leaks and a USB port for saving test data and firmware updates. It manages up to 100 test programs and is equipped with a high-precision manual pressure regulator.
Connectivity and Measurement Range

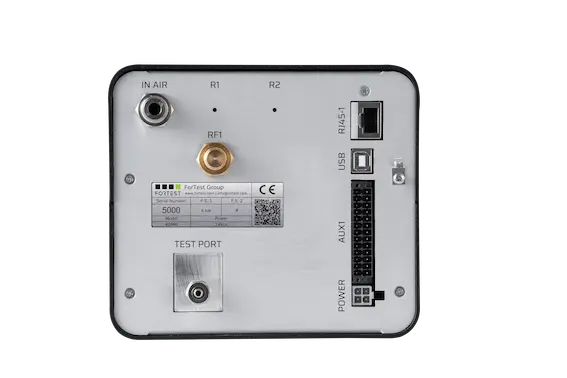

The K5990 ensures excellent integration thanks to I/O ports, RS232, RS485 and USB (with Ethernet available as optional). Operational flexibility is ensured by measurement scales that cover a range from -1 to 10 bar.
| Model | 0-1 bar e -1-0 bar | 1-2 bar | 2-6 bar | 6-10 bar |
|---|---|---|---|---|
| Accuracy Dp | 0,5% RDG+3DGT | 0,5% RDG+3DGT | 0,5% RDG+3DGT | 0,5% RDG+3DGT |
| Range of measurements Dp | 0-65 mbar | 0-65 mbar | 0-65 mbar | 0-65 mbar |
| Resolution Dp | 0,001 mbar | 0,002 mbar | 0,005 mbar | 0,01 mbar |
| Direct pressure accuracy | 0,5%FS | 0,5%FS | 0,5%FS | 0,5%FS |
| Direct pressure measurement range | 0-FS | 0-FS | 0-FS | 0-FS |
| Direct pressure resolution | 0,1 mbar | 0,1 mbar | 0,1 mbar | 1 mbar |
| Accuracy measuring loss in cc/’ | 1%RDG+0,03cc/min | 1%RDG+0,03cc/min | 1%RDG+0,03cc/min | 1%RDG+0,03cc/min |
| Measurement range in cc/’ | 0-10 cc/min | 0-10 cc/min | 0-10 cc/min | 0-10 cc/min |
| Measured measurement resolution in cc/’ | 0,01 cc/min | 0,01 cc/min | 0,01 cc/min | 0,01 cc/min |
| Accuracy measure volume in cc | - | - | - | - |
| Volume range in cc | - | - | - | - |
| Volume measurement resolution in cc | - | - | - | - |
| measure unit | mbar, bar, psi, mmHg, mmH2O, Pa, HPa, cc/min, cc/h, pressure/s. | |||
| Dimensions | L:160 H:140 l:180 mm | |||
| Weight | 2,5 kg | |||
| Display size | 3,5” – 480x480 pixel | |||
| Operating temperature range | 5-40 °C | |||
| RS232 ports | 2 | |||
| RS485 ports | 1 | |||
| “master” usb port | 1 | |||
| “slave” usb port | 1 | |||
| Ethernet port | Optional (protocolli ForTest, Modbus RTU) | |||
| I/O signals | Start, Stop, Filling, Test, Good, Reject, 3BCD | |||
| Auxiliaries I/O signals (optional) | - | |||
| Number of programs | 100 | |||
| Test archive memory | Standard | |||
| Password block | Yes | |||
| Program name | Yes | |||
| Note |
The resolution to be considered for accuracy is always 1 Pa. Reference Normatives: EN 61010-1, EN61326-1 / EN61326/A1, EN61000-3-2 / EN61000-3-2/A14, EN61000-3-3 / EN61000-3-3/A1, EN61000-4-2 / EN61000-4-2/A1, EN61000-4-3 / EN61000-4-3/A1 / EN61000-4-3/A2, EN61000-4-4, EN61000-4-5, EN61000-4-11, EN1779
|
|||
Datasheet K5990 ForTest – ITALIANO – REV.1 – PDF
Communicatin Protocol ForTest – PDF
Communication Protocol Modbus RTU – PDF
Data mapping Profinet ForTest – Revision-D – PDF
GSDML File ForTest – Revision-D – ZIP
Data mapping Profinet ForTest – Revision-H – PDF
GSDML File ForTest – Revision-H – ZIP
Data mapping EtherNet/IP ForTest – Revision-H – PDF
ESD File ForTest – Revision-H – EDS
Data mapping EtherCAT ForTest – Revision-H – PDF
XML File ForTest – Revision-H – XML
USB Drivers for Windows OS – Windows x86/x64 – ZIP
(*) Ethernet-based interfaces with standardized industrial communication protocols are optional and not included by default in the instrument. Furthermore, depending on the availability of embedded modules that support these protocols, it is necessary to refer to the specific model and hardware revision installed, as the modules are integrated based on availability at the time of order.
