Dual Absolute® Air Leak Tester
K7090 contains the patented Dual Absolute® technology, which supersedes traditional differential measurement, improving its weaknesses. Wide flexibility of use thanks to the high configurability of options and measurement ranges.
Application Sectors
Patented Dual Absolute Technology
The K7090 introduces ForTest’s innovative Dual Absolute technology, a patented system that revolutionizes the testing concept. This unique equipment incorporates 4 different measurement modes: Absolute Decay, Classic Differential, Dual Absolute and Zero Central, offering unprecedented versatility on the market.
Overcoming Differential Systems
The Dual Absolute mode has been designed to eliminate the limitations of traditional differential systems. It fundamentally resolves critical issues such as different stabilization between Master and Test parts, pneumatic circuit fragility, and setup complexity, ensuring more stable tests and drastically reduced maintenance.
Advanced Interface and “Total Glass” Design

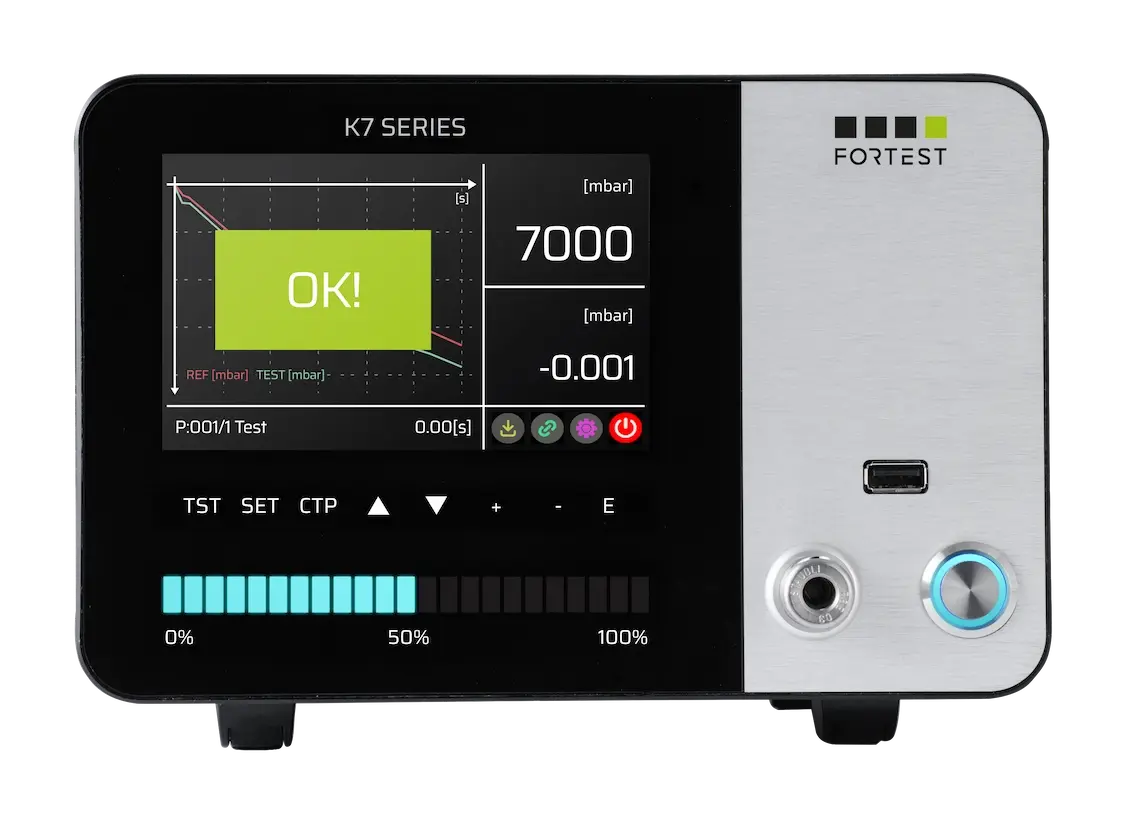

The user experience is entrusted to a 5.7″ color capacitive touch-screen display, integrated into a high-strength tempered glass panel. Cycle management is made immediate by the dynamic LED bar and backlit keyboard, ensuring maximum operability even in intensive production environments.

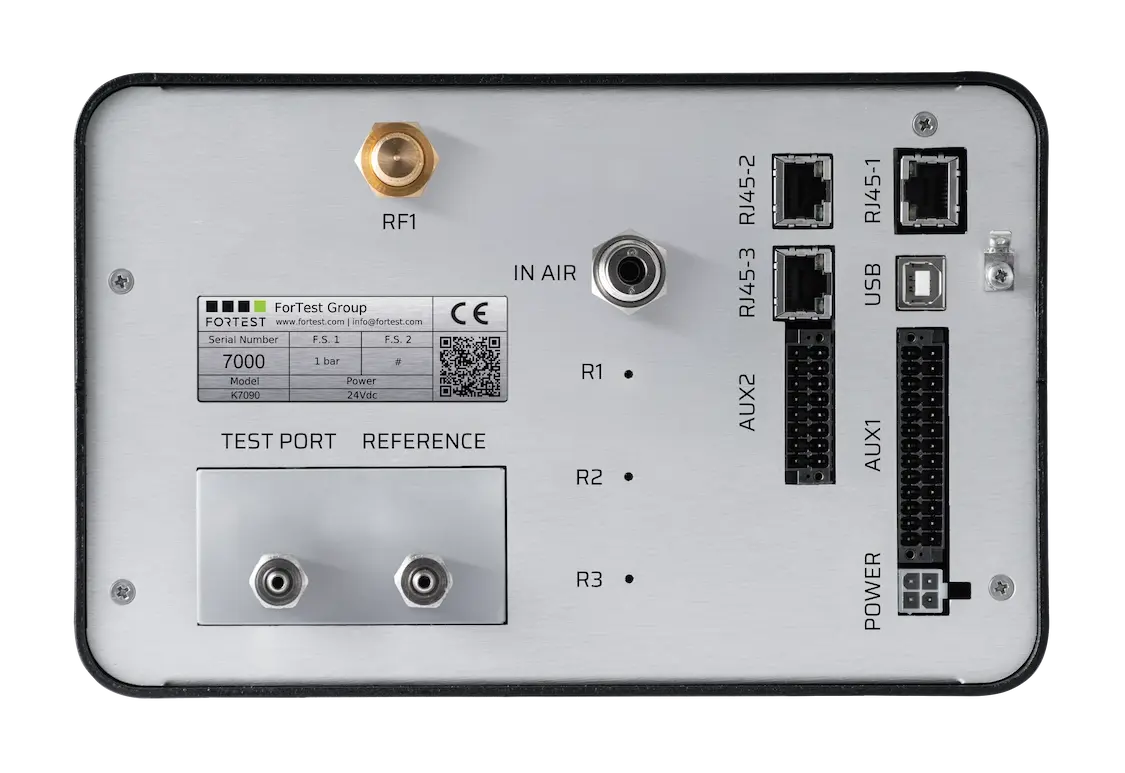

Pneumatic Configuration and Testing
The K7090 handles measurement scales from –1 to 15 bar and allows storing up to 300 test programs. It includes as standard a high-precision manual pressure regulator (also available in electronic version), SB Uporta for data logging/firmware update and the Stäubli®® fitting for quick verification through calibrated leaks.
Global Connectivity Industry 4.0
The equipment offers a complete standard package: Ethernet, RS232, RS485, USB, Bluetooth and Wi-Fi. For advanced integration into SCADA and MES systems, modules can be added for main industrial protocols such as Profinet, EtherNet/IP and EtherCAT.
| Modello | 0-1bar | 1-2bar | 2-6bar | 6-10bar | 10-15bar |
|---|---|---|---|---|---|
| Accuratezza Dp | 0,5% RDG+3DGT | 0,5% RDG+3DGT | 0,5% RDG+3DGT | 0,5% RDG+3DGT | 0,5% RDG+3DGT |
| Range di misura Dp | 0-65 mbar | 0-65 mbar | 0-65 mbar | 0-650 mbar | 0-650 mbar |
| Risoluzione Dp | 0,001 mbar | 0,002 mbar | 0,005 mbar | 0,01 mbar | 0,1 mbar |
| Accuratezza pressione diretta | 0,5%FS | 0,5%FS | 0,5%FS | 0,5%FS | 0,5%FS |
| Range di misura pressione diretta | 0-FS | 0-FS | 0-FS | 0-FS | 0-FS |
| Risoluzione pressione diretta | 0,1 mbar | 0,1 mbar | 0,1 mbar | 1 mbar | 1 mbar |
| Accuratezza misura perdita in cc/’ | 1%RDG+0,03cc/min | 1%RDG+0,03cc/min | 1%RDG+0,03cc/min | 1%RDG+0,03cc/min | 1%RDG+0,03cc/min |
| Range di misura perdita in cc/’ | 0-10 cc/min | 0-10 cc/min | 0-10 cc/min | 0-10 cc/min | 0-10 cc/min |
| Risoluzione misura perdita in cc/’ | 0,01 cc/min | 0,01 cc/min | 0,01 cc/min | 0,01 cc/min | 0,01 cc/min |
| Accuratezza misura volume in cc | 1%RDG+2cc/min | 1%RDG+2cc/min | 1%RDG+2cc/min | 1%RDG+2cc/min | - |
| Range di misura volume in cc | 0-500 cc | 0-500 cc | 0-500 cc | 0-500 cc | - |
| Risoluzione misura volume in cc | 0,1 cc | 0,1 cc | 0,1 cc | 0,1 cc | - |
| Unità di misura | mbar, bar, psi, mmHg, mmH2O, Pa, HPa, cc/min, cc/h, pressure/s. | ||||
| Dimensioni | L: 220 h:140 l:250 mm | ||||
| Peso | 4 kg | ||||
| Dimensioni display | 5.7” - 800x480 pixel | ||||
| Range temperatura di funzionamento | 5-40 °C | ||||
| Porte RS232 | 2 | ||||
| Porte RS485 | 1 | ||||
| Porta usb “master” | 1 | ||||
| Porta usb “slave” | 1 | ||||
| Porta ethernet | Optional (protocolli ForTest, Modbus RTU, Profinet, EtherCAT, EtherNet/IP) | ||||
| Segnali I/O | Start, Stop, Filling, Test, Good, Reject, 4BCD | ||||
| Segnali I/O ausiliari (optional) | 8 output programmable, 4 input programmable, 4BCD | ||||
| Numero programmi | 300 | ||||
| Memoria archivio prove | Advanced | ||||
| Blocco con password | Yes | ||||
| Nome programma | Yes , 16 characters | ||||
| Note |
La risoluzione da considerarsi ai fini dell'accuratezza è sempre 1 Pa Norme di riferimento: EN 61010-1, EN61326-1 / EN61326/A1, EN61000-3-2 / EN61000-3-2/A14, EN61000-3-3 / EN61000-3-3/A1, EN61000-4-2 / EN61000-4-2/A1, EN61000-4-3 / EN61000-4-3/A1 / EN61000-4-3/A2, EN61000-4-4, EN61000-4-5, EN61000-4-11, EN1779
|
||||
Datasheet T8990 ForTest – ITALIANO – REV.1 – PDF
Communicatin Protocol ForTest – PDF
Communication Protocol Modbus RTU – PDF
Data mapping Profinet ForTest – Revision-D – PDF
GSDML File ForTest – Revision-D – ZIP
Data mapping Profinet ForTest – Revision-H – PDF
GSDML File ForTest – Revision-H – ZIP
Data mapping EtherNet/IP ForTest – Revision-H – PDF
ESD File ForTest – Revision-H – EDS
Data mapping EtherCAT ForTest – Revision-H – PDF
XML File ForTest – Revision-H – XML
USB Drivers for Windows OS – Windows x86/x64 – ZIP
(*) Ethernet-based interfaces with standardized industrial communication protocols are optional and not included by default in the instrument. Furthermore, depending on the availability of embedded modules that support these protocols, it is necessary to refer to the specific model and hardware revision installed, as the modules are integrated based on availability at the time of order.
