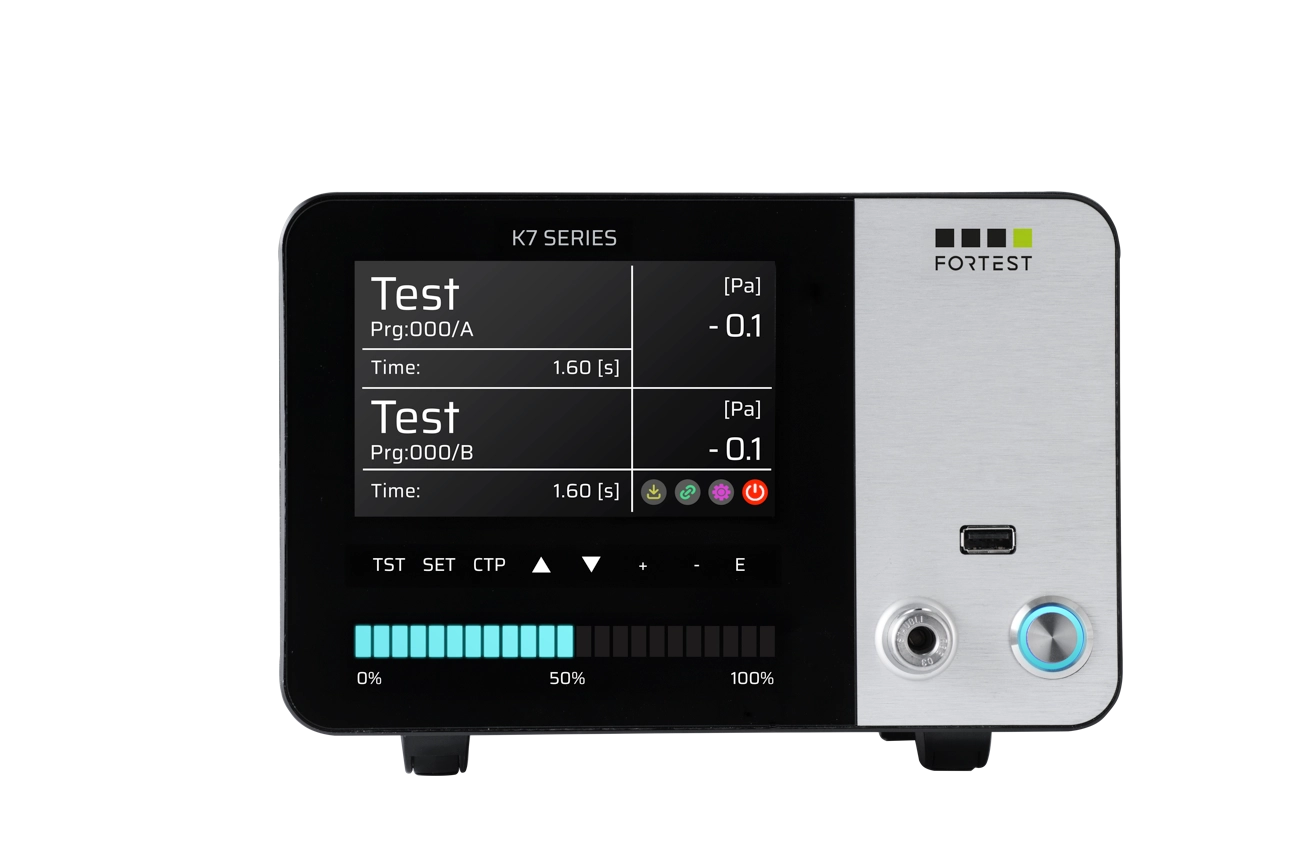

K7890-strumento-prova-tenuta-bicanale-fortest Pannello retro K7990 prova tenuta calo assoluto ForTest
News

K7890

Dual-channel absolute decay air leak tester

For those seeking even higher productivity in leak testing, the solution is a dual-channel equipment like K7890, which incorporates 2 independent measurement channels in a standard chassis, allowing simultaneous testing of 2 parts.

It is suitable for all industrial sectors (automotive, medical, hydraulics, appliances, e-mobility, aerospace, and defense) thanks to its highly configurable options and measurement ranges.

  • Double productivity
  • Compact dimensions
  • Suitable for all industries
  • Capacitive touch-screen display and keyboard

Application Sectors

Request information
Configure the product

Compact Design and Dual-Channel Performance
The K7890 represents ForTest’s latest innovation in the field of leak testing. While integrating dual-channel technology, the equipment is housed in the same ultra-compact case as the single-channel K8990 model, establishing itself as the most compact device in its category. This configuration is ideal for testing pairs of headlights or dual-chamber components, allowing test times to be halved without sacrificing the flexibility and reliability that distinguish the K series.

User Interface and Industrial Robustness
The user experience is revolutionized by a next-generation HMI. The front panel in tempered glass, designed to withstand continuous cycles in harsh production environments, houses a 5.7″ color TFT display with capacitive touch interface. Control is made even more intuitive by a dynamic LED bar for immediate process monitoring and a backlit keyboard.

Pneumatic Configuration and Precision
The K7890 offers versatility in pressure management, with measurement scales covering a range from –1 to 15 bar. The equipment is available with two regulation modes: high-precision manual or automatic electronic. The standard configuration includes 300 configurable test programs, a USB port for data logging, and a dedicated Stäubli®® fitting for connecting calibrated leaks for periodic calibration verification.

Total Connectivity and 4.0 Integration
On the communication front, the K7890 has no limits. In addition to standard interfaces such as Ethernet, RS232, RS485 and USB, the device integrates Bluetooth and Wi-Fi wireless modules. For perfect interoperability with PLC, SCADA and MES systems in an Industry 4.0 perspective, the equipment is expandable with the main fieldbus protocols, including Modbus RTU, Profinet, EtherNet/IP and EtherCAT.

  0-1bar 1-2bar 2-6bar 6-10bar 10-15bar
Accuracy Dp 0,5% RDG+3DGT 0,5% RDG+3DGT 0,5% RDG+3DGT 0,5% RDG+3DGT 0,5% RDG+3DGT
Range of measurements Dp 0-65 mbar 0-65 mbar 0-65 mbar 0-650 mbar 0-650 mbar
Resolution Dp 0,001 mbar 0,002 mbar 0,005 mbar 0,01 mbar 0,1 mbar
Direct pressure accuracy 0,5%FS 0,5%FS 0,5%FS 0,5%FS 0,5%FS
Direct pressure measurement range 0-FS 0-FS 0-FS 0-FS 0-FS
Direct pressure resolution 0,1 mbar 0,1 mbar 0,1 mbar 1 mbar   1 mbar
Accuracy measuring loss in cc/’ 1%RDG+0,03cc/min 1%RDG+0,03cc/min 1%RDG+0,03cc/min 1%RDG+0,03cc/min 1%RDG+0,03cc/min
Measurement range in cc/’ 0-10 cc/min 0-10 cc/min 0-10 cc/min 0-10 cc/min 0-10 cc/min
Measured measurement resolution in cc/’ 0,01 cc/min 0,01 cc/min 0,01 cc/min 0,01 cc/min 0,01 cc/min
Accuracy measure volume in cc 1%RDG+2cc/min   1%RDG+2cc/min   1%RDG+2cc/min   1%RDG+2cc/min   -
Volume range in cc 0-500 cc 0-500 cc 0-500 cc 0-500 cc -
Volume measurement resolution in cc 0,1 cc 0,1 cc 0,1 cc 0,1 cc -
Measure unit mbar, bar, psi, mmHg, mmH2O, Pa, HPa, cc/min, cc/h, pressure/s.
Dimensions L: 220 h:140 l:250 mm
Weight 4 kg
Display size 5.7” - 800x480 pixel
Operating temperature range 5-40 °C
RS232 ports 2
RS485 ports 1
“master” usb port 1
“slave” usb port 1
Ethernet port Optional (protocolli ForTest, Modbus RTU, Profinet, EtherCAT, EtherNet/IP)
I/O signals Start, Stop, Filling, Test, Good, Reject, 4BCD
Auxiliaries 8 output programmable, 4 input programmable, 4BCD
Number of programs 300
 Test archive memory Advanced
Password block Yes
Program name Yes , 16 characters
Note

The resolution to be considered for accuracy is always 1 Pa.

Reference Normatives: EN 61010-1, EN61326-1 / EN61326/A1, EN61000-3-2 / EN61000-3-2/A14, EN61000-3-3 / EN61000-3-3/A1, EN61000-4-2 / EN61000-4-2/A1, EN61000-4-3 / EN61000-4-3/A1 / EN61000-4-3/A2, EN61000-4-4, EN61000-4-5, EN61000-4-11, EN1779

  • The resolution for uncertainty calculation is 1 Pa up to 10 bar.
  • The flow measurement of the flow meters is of mass type and referred to the reference condition of 0°C - 1013,25mbar.
  • Flow measurement of leak test equipment is volumetric.
  • Accuracy data are referred to and guaranteed under laboratory calibration conditions.
  • The accuracy of the flow measurement is referred up to 2 bar, for higher pressures variations are possible depending on the characteristics of the model.
  • For measurement scales greater than the limits indicated, the accuracy will be specified in the offer phase.
  • External discharge solenoid valve with filter
  • External start button
  • External start/abort push-button panel
  • External 4-program selection push-button panel
  • Start foot pedal
  • Barcode reader
  • Adhesive label for printer 4500pcs
  • AUX signal extension cable
  • Venturi
  • Air filter
  • Stäubli® male connector
  • Precision micrometric valve
  • Micrometric valve
  • PC Software K-Series Manager
    • Internal Discharge Valve
    • Front precision pressure regulator – (STANDARD)
    • Electronic pressure regulator
    • I/O expansion board 24 Vdc
    • Two-hand safety logic start input
    • Ethernet/TCP-IP port
    • EtherNet/IP port
    • EtherCAT port
    • Profinet port
    • Active USB port – (STANDARD)
    • Bluetooth Low Energy interface – (STANDARD)
    • WI-FI connection
    • High resolution measurement (1M pts AD) – (STANDARD)

    Product Sheet

    Datasheet T8990 ForTest – ITALIANO – REV.1 – PDF

    3D Model

    K7000 3D Model – STEP

    Serial communication protocols

    Communicatin Protocol ForTest – PDF

    Communication Protocol Modbus RTU – PDF

    Documentazione Profinet (*)

    Data mapping Profinet ForTest – Revision-D – PDF

    GSDML File ForTest – Revision-D – ZIP

    Data mapping Profinet ForTest – Revision-H – PDF

    GSDML File ForTest – Revision-H – ZIP

    Documentazione EtherNet/IP(*)

    Data mapping EtherNet/IP ForTest – Revision-H – PDF

    ESD File ForTest – Revision-H – EDS

    Documentazione EtherCAT(*)

    Data mapping EtherCAT ForTest – Revision-H – PDF

    XML File ForTest – Revision-H – XML

    Software

    USB Drivers for Windows OS – Windows x86/x64 – ZIP

    (*) Ethernet-based interfaces with standardized industrial communication protocols are optional and not included by default in the instrument. Furthermore, depending on the availability of embedded modules that support these protocols, it is necessary to refer to the specific model and hardware revision installed, as the modules are integrated based on availability at the time of order.
