T8090

Dual Absolute® Equipment

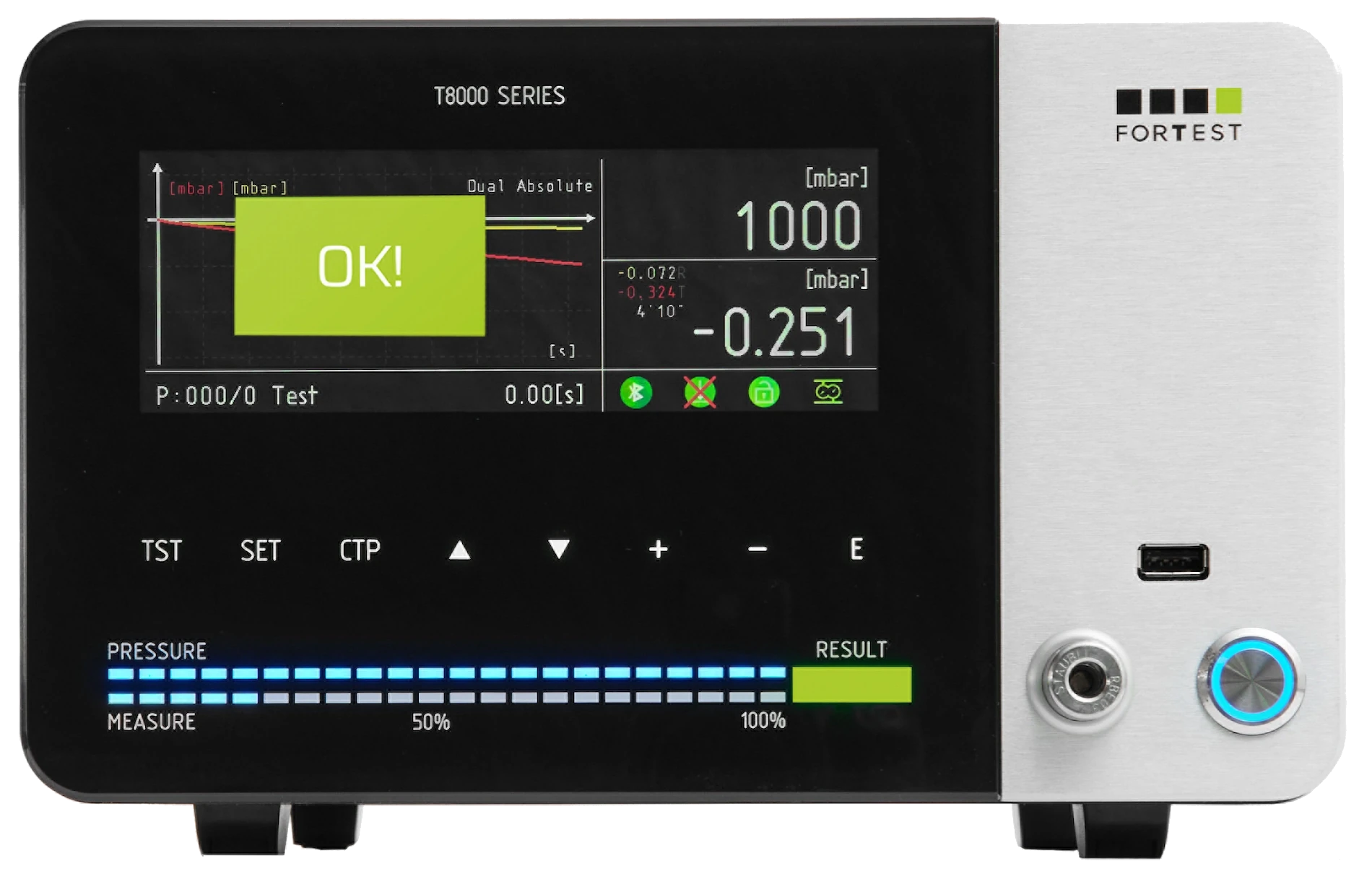

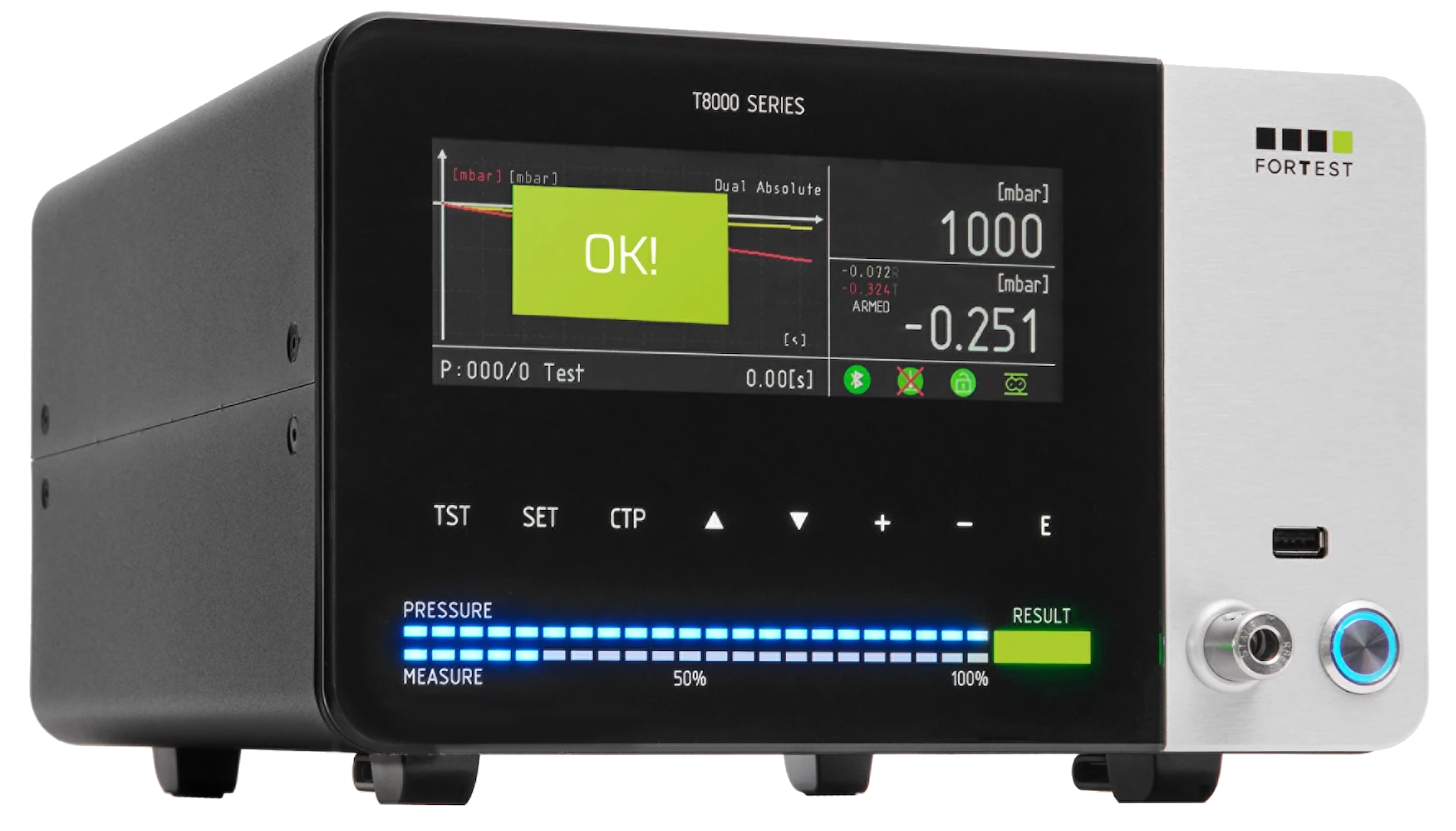

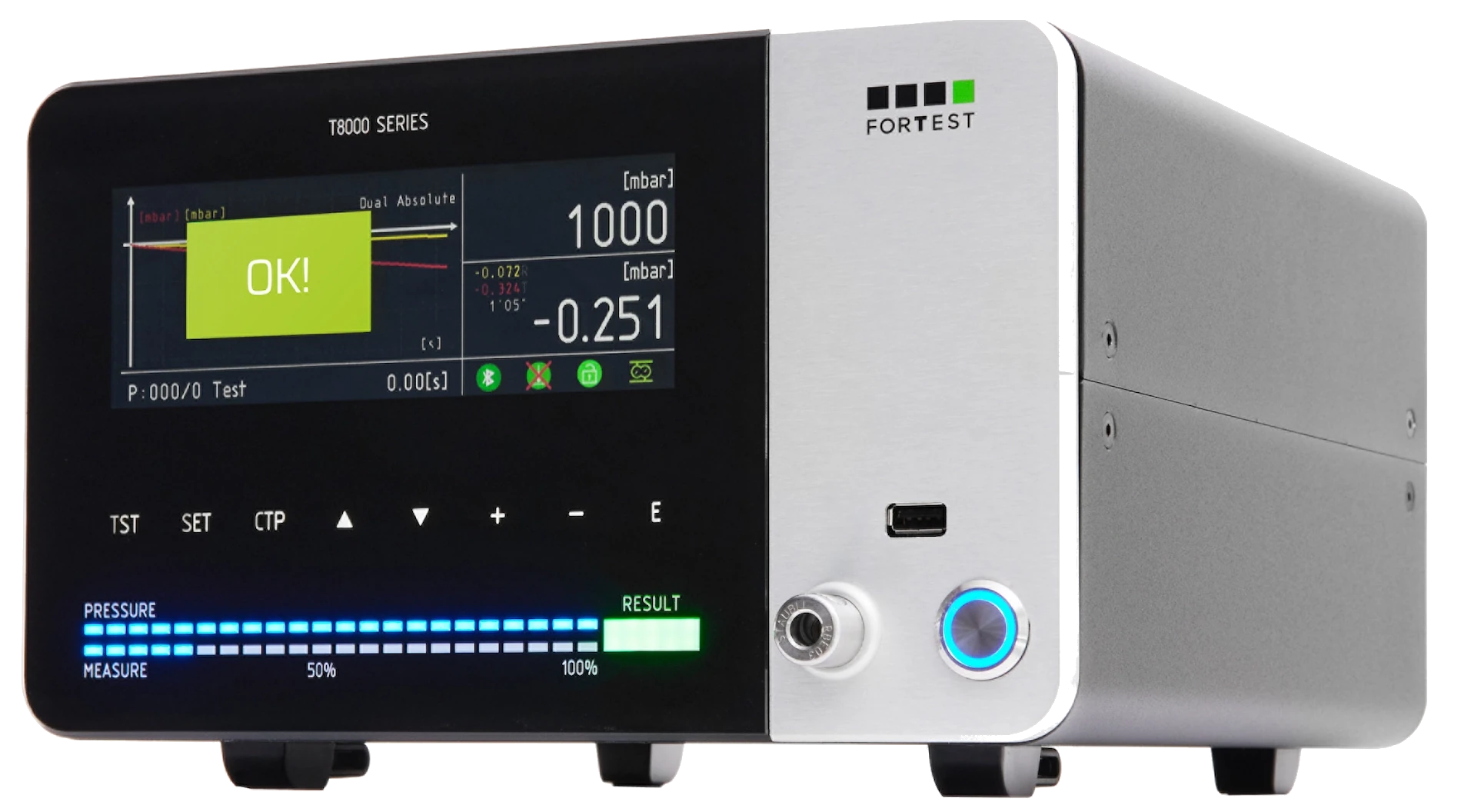

The T8090 represents ForTest’s technological excellence in the leak testing sector, introducing the revolutionary patented Dual Absolute® technology.

This equipment combines the ease of use of absolute decay systems with the extreme precision of differential systems, eliminating their typical stabilization defects.

Designed for Industry 4.0, it integrates an advanced user interface with a 6.2″ display featuring capacitive touchscreen and total connectivity for perfect integration into high-productivity automated lines.

Dual Absolute® Technology
Advanced Operator Interface
Unlimited Connectivity
Performance and Reliability

Revolutionary Dual Absolute® Technology
The T8090 integrates the exclusive patented Dual Absolute®, which marks the advancement beyond classic differential systems. This technology allows achieving the sensitivity and precision typical of differential tests, but eliminates the need for a reference “Master” part, simplifying the pneumatics and drastically reducing maintenance costs and setup times.

Interface Utilisateur et Design “Smart”
L’appareil est équipé du système vidéo ForTest HMI et d’un large écran couleur de 6,2″. Le panneau frontal en verre trempé avec technologie tactile capacitive garantit une résistance supérieure en environnement industriel, tandis que l’interface graphique intuitive permet de surveiller les cycles de test et les graphiques de fuite en temps réel avec une clarté extrême.

Industrial Connectivity and Industry 4.0
Designed for total integration, the T8090 features a complete range of interfaces: USB, RS232 and RS485 are provided as standard. For the most advanced automated lines, it supports the main fieldbus protocols such as Profinet, EtherNet/IP and EtherCAT, facilitating communication with PLCs, SCADA systems and enterprise databases (MES) for complete traceability.

Exceptional Pneumatic Performance
Thanks to an optimized pneumatic section and new generation valves, the T8090 boasts a filling speed that is 30% higher than previous models. With a real measurement resolution up to 0.1 Pa, the equipment is capable of handling significant volumes and critical applications (such as EV battery packs) ensuring fast, stable and precise test cycles.

Model	0-1bar	1-2bar	2-6bar	6-10bar	10-20bar	20-50bar
Accuracy Dp	0,5% RDG+3DGT	0,5% RDG+3DGT	0,5% RDG+3DGT	0,5% RDG+3DGT	0,5% RDG+3DGT	0,5% RDG+3DGT
Range of measurements Dp	0-65 mbar	0-65 mbar	0-65 mbar	0-650 mbar	0-650 mbar	0-650 mbar
Resolution Dp	0,001 mbar	0,002 mbar	0,005 mbar	0,01 mbar	0,1 mbar	0,1 mbar
Direct pressure accuracy	0,5%FS	0,5%FS	0,5%FS	0,5%FS	0,5%FS	0,5%FS
Direct pressure measurement range	0-FS	0-FS	0-FS	0-FS	0-FS	0-FS
Direct pressure resolution	0,1 mbar	0,1 mbar	0,1 mbar	1 mbar	1 mbar	10 mbar
Accuracy measuring loss in cc/’	1%RDG+0,03cc/min	1%RDG+0,03cc/min	1%RDG+0,03cc/min	1%RDG+0,03cc/min	1%RDG+0,03cc/min	1%RDG+0,03cc/min
Measurement range in cc/’	0-10 cc/min	0-10 cc/min	0-10 cc/min	0-10 cc/min	0-10 cc/min	0-10 cc/min
Measured measurement resolution in cc/’	0,01 cc/min	0,01 cc/min	0,01 cc/min	0,01 cc/min	0,01 cc/min	0,01 cc/min
Accuracy measure volume in cc	1%RDG+2cc	1%RDG+2cc	1%RDG+2cc	1%RDG+2cc	-	-
Volume range in cc	0-500 cc	0-500 cc	0-500 cc	0-500 cc	-	-
Volume measurement resolution in cc	0,1 cc	0,1 cc	0,1 cc	0,1 cc	-	-
Measure unit	mbar, bar, psi, mmHg, mmH2O, Pa, HPa, cc/min, cc/h, pressure/s.
Dimensions	L: 270 h:160 l:300 mm
Weight	8 kg
Display size	800x280 pixel
Operating temperature range	5-40 °C
RS232 ports	2
RS485 ports	1
“master” usb port	1
“slave” usb port	1
Ethernet port	Optional

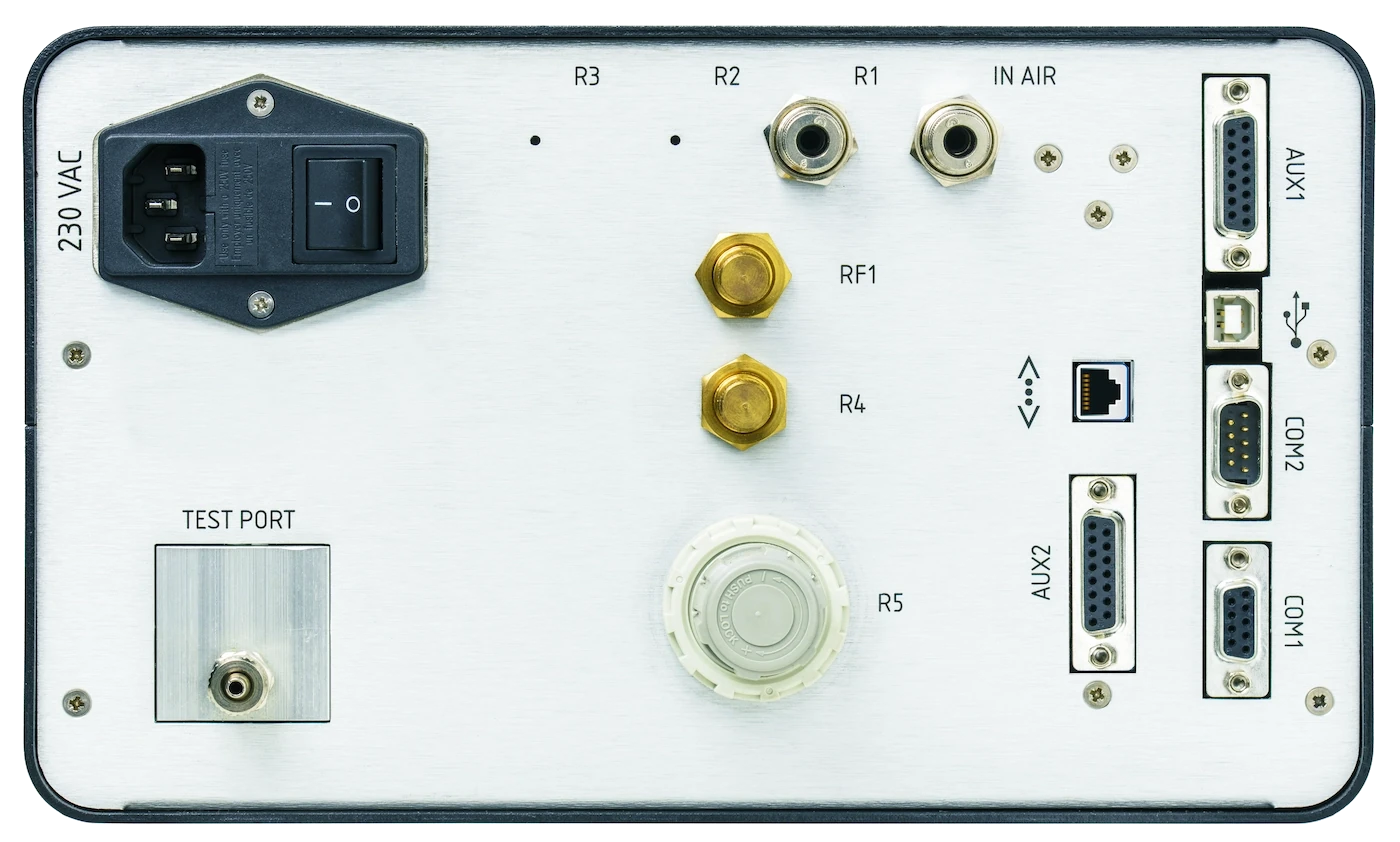

I/O signals	Start, Stop, Filling, Test, Good, Reject, 4BCD
Auxiliary I/O signals (optional)	8 output programmable, 4 input programmable, 4BCD
Number of programs	300
Test archive memory	Advanced
Password block	Yes
Program name	Yes , 16 characters
Note	The resolution to be considered for accuracy is always 1 Pa. Reference Normatives: EN 61010-1, EN61326-1 / EN61326/A1, EN61000-3-2 / EN61000-3-2/A14, EN61000-3-3 / EN61000-3-3/A1, EN61000-4-2 / EN61000-4-2/A1, EN61000-4-3 / EN61000-4-3/A1 / EN61000-4-3/A2, EN61000-4-4, EN61000-4-5, EN61000-4-11, EN1779 The resolution for uncertainty calculation is 1 Pa up to 10 bar. The flow measurement of the flow meters is of mass type and referred to the reference condition of 0°C - 1013,25mbar. Flow measurement of leak test equipment is volumetric. Accuracy data are referred to and guaranteed under laboratory calibration conditions. The accuracy of the flow measurement is referred up to 2 bar, for higher pressures variations are possible depending on the characteristics of the model. For measurement scales greater than the limits indicated, the accuracy will be specified in the offer phase.
* Volumetric measurement is only available if the volumetric measurement option is included

External discharge solenoid valve with filter
3-way pneumatic valve
Pilot solenoid valve
5-way pneumatic valve
External start button
External start/abort push-button panel
External 4-program selection push-button panel
Start foot pedal
Barcode reader
Adhesive label for printer 4500pcs
AUX signal extension cable
Venturi
Air filter
Stäubli® male connector
Precision micrometric valve
Micrometric valve
Leak Test Manager T-Series Software
Cylinder-type valve splitting unit with filters
Proprietary serial cable PC – T-Series
External temperature probe
3-way pneumatic valve with pilot valve
Data Manager T-Series Software
Stäubli® female connector
Thermal printer with label dispenser
Thermal printer without label dispenser
AUX adapter cable T-Series – ET Series
Start/Abort/Good/Reject button
5 micron air filter

Internal Discharge Valve
Pneumatic for fast filling
Pneumatic with fast micro solenoid valves
Front coupling for calibrated leak Stäubli®© – (STANDARD)
Front precision pressure regulator – (STANDARD)
Electronic pressure regulator
Primary pressure auto-zero circuit
Positive and negative test
Pre-filling
Primary pressure reading on standby
Secondary reject output (third result)
Barometric measurement
Leak analog output
I/O expansion board 24 Vdc
Two-hand safety logic start input
Ethernet/TCP-IP socket
Active USB port – (STANDARD)
Bluetooth Low Energy – (STANDARD)
WI-FI connection
Remote radio control kit for program selection/start
High resolution measurement (1M pts AD) – (STANDARD)
Capacimeter for part volume measurement
Automatic dual branch pre-regulated pressures
Dynamic Offset Correction
Profinet interface
EtherCAT interface
EtherNet/IP Interface

(*) Ethernet-based interfaces with standardized industrial communication protocols are optional and not included by default in the instrument. Furthermore, depending on the availability of embedded modules that support these protocols, it is necessary to refer to the specific model and hardware revision installed, as the modules are integrated based on availability at the time of order.
