M8990 is the ForTest M Series absolute pressure drop tester

Applications:

  Aerospace   Mechanical
  Automotive   Medical
  Household Appliances   Oleodynamic
  Electronics   Packaging
  Foundry   Gas
  Pneumatics   Heating
  Valves   Hydraulics
  Brakes   Alternative Energy
  Refrigeration   Cylinders
Absolute decay standard level M8990 ForTest

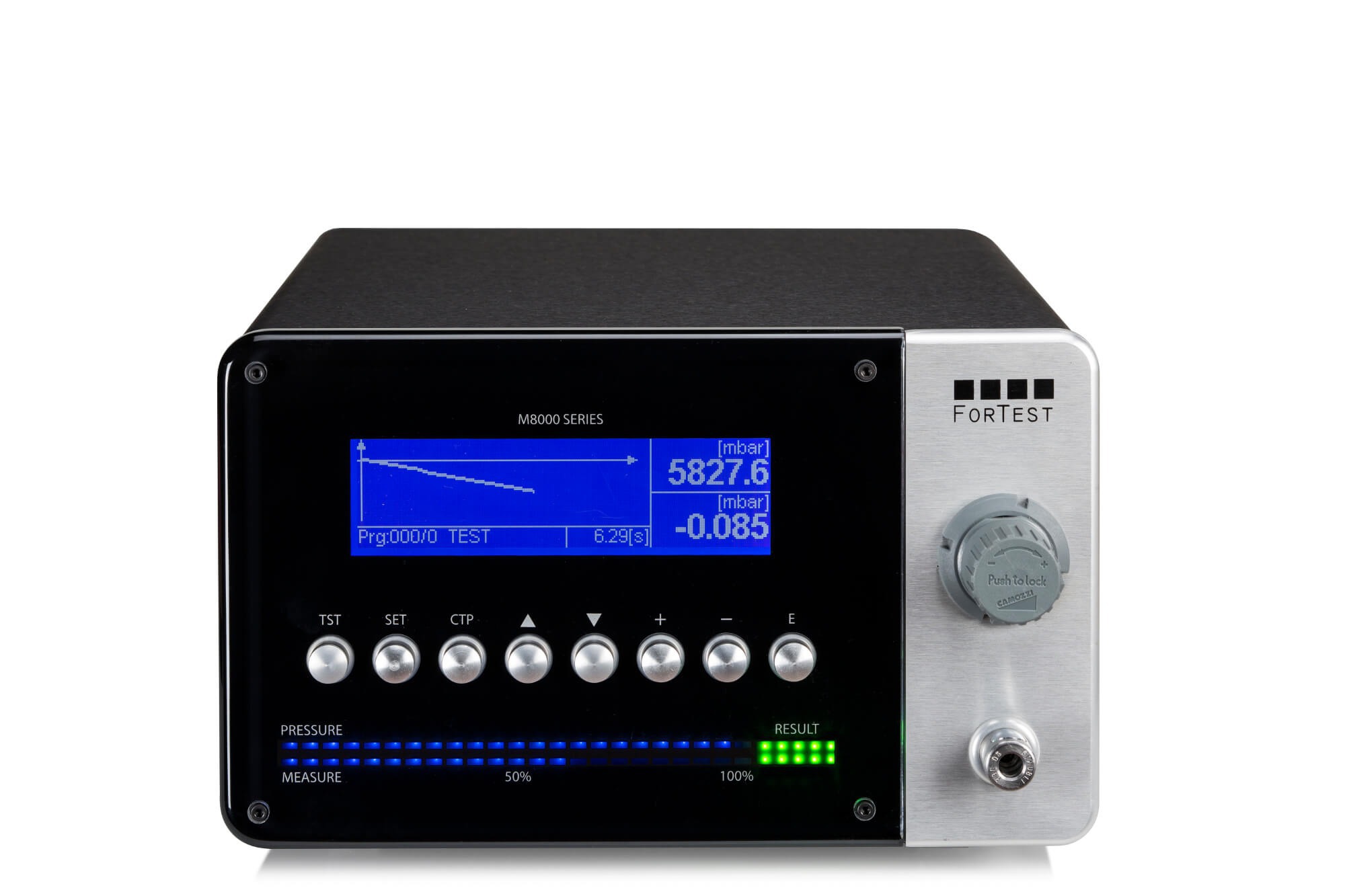

M8990 is the new universal absolute pressure decay leak tester of ForTest® M series.

We optimized the pneumatic circuit so as to remove the additional test volume, and also we installed a new microprocessor mother board and a revolutionary management software in order to make very reliable and fast tests.

This equipment has also got a graphic display with 240x64 pixels and blue back-illumination, 8 control buttons, mother board with new hardware, “no break-through” Plexiglass front panel and frontal pressure regulator.

The external case is elegant, compact and very resistant , the anodized aluminium integrates pneumatics elements and expansion electric connectors. M8900 can be supplied in two versions: with standard electro valves or with micro electro valves, which allow to reduce test times considerably.

The revolutionary Flash technology with ultra fast elaboration times allows to have a graphic display with Cartesian coordinate plane and with auto scale of the leak test. This equipment is available with test pressure from -1 to 50 bar.

M8990  has got a 24 Vdc Aux connector for expansion signals, a USB port, a RS232 opto isolated port and a opto isolated port for industrial multi test stations networks.

We can supply also external accessories as: printers, Staubli fittings for the connection to the front panel of M0710 (calibrated leaks), kits network sorting for the realization of complex PC networks, mechanical precise regulators  etc …

If requested, it is possible to install a USB flash drive to record the tests, radio remote control to manage the tests, Bluetooth, Ethernet and Internet direct connections.

 Thanks to its renewed hardware, M8990 shows a measurement accuracy of 0.1 Pa which allows to make tests at the highest quickness and reliability possible in air leak test field.

The equipment also has got: a very simple user interface, multi language menu, bar graph indicator which shows test pressure and the detected decay, RGB led  to show good or bad result.

  • Black anodized aluminium case
  • "No break-through" plexiglass front panel
  • Display of test pressure and of pressure decay in:  mbar / mbar/s / Pa / hPA / cc/min / cc/h
  • LCD display: 240x64 pixels and blue back-illumination
  • Graphic visualization of the leak test on Cartesian coordinate plane
  • Mechanical pressure regulator
  • Electronic pressure regulator on demand
  • Measure resolution of pressure decay of 0,1 Pa (for equipment until 1 bar)
  • Pieces Counter and Real time Clock Memory
  • Possibility to set up till 300 test programs
  • Calibration according to ISO rules (Menu accessible to the user and concealed by a control algorithm)
  • Connector with 24 Vdc expansion signals
  • RS232 opto isolated port
  • Opto isolated Port for industrial multi points networks
  • USB port for PC connection
  • USB flash drive to record the tests, radio remote control to manage the tests, Wi-fi, Ethernet and Internet direct connections (on request)
  • Working temperature min. 5°C / max. 40 °C
  • Weight for the basic version: 8 kg.
  • Dimensions: 270X160X300 mm.
  • Pressure full scale: (mbar) : -1000, 200, 500, 1000, 2000, 3000, 6000, 10000, 15000, 20000, 25000, 30000, 50000
  • Power supply: 110 Vac 50/60Hz, 230 Vac 50/60Hz
  • Different pneumatics available for tubes (mm): 4x2,7, 6x4, 8x6, 10x8
  • Test Gas: Hydrogen, Compressed air, Nitrogen

  • External exhaust solenoid with protection filter
  • 3 way pneumatic valve
  • Pilotage solenoid
  • 5 way Pneumatic valve
  • External start button
  • External start/abort pushbutton
  • External pushbutton 4 programs selection
  • Start pedal
  • Barcode reader
  • Adhesive label for printer 4500pcs
  • Aux signals extension cable
  • Venturi Vacuum generator
  • Air filter
  • Staubli male connector
  • Precision micrometer nozzle
  • Micrometer nozzle
  • M series manager software
  • TTY
  • Serial protocol
  • Electrovalve group "cylinder's" type with filter
  • PC serial cable owner ---> M Series
  • External temperature probe
  • 3-way pneumatic valve with pilot valve
  • MIXER-07
  • Software Data Manager
  • Staubli female fitting
  • Thermal printer with peel-off
  • Thermal printer without peel
  • Adapter cable AUX M Series ---> ET Series
  • Remote Start / Abort / Good / Reject
  • Air filter 5 micron

  • Interior exhaust valve
  • Pneumatic filling fast
  • Pneumatics with micro electro valves
  • Kit sniffer Hydrogen H2
  • Frontal connector for Staubli calibrated leak
  • Frontal precision pressure regulator
  • Electronic pressure Regulator
  • Auto zero primary pressure circuit
  • Positive test and negative test
  • Pre-Filling
  • Waiting Primary pressure reading
  • Secondary Output of Waste (third result)
  • Leak Analog Output
  • I/O 24 Vdc expansion signal card
  • Bi-manual logic Start Input
  • Ethernet plug/TCP-IP
  • Active USB port
  • WI-FI connection
  • Radio remote control selection Kit
  • High resolution measure - (STANDARD)
  • Capacitance meter for piece volume measure
  • Double branches of pre-regulated pressures
