T8090

Dual Absolute Technology

T8090

The Dual Absolute.
The new Dual Absolute technology makes it possible to eliminate the disadvantages of a classic differential system, improve its advantages and renew an industry that has been standing still for decades. Thanks to the new Dual Absolute technology, ForTest has combined the simplicity of a classic absolute decay system with the precision and sensitivity of a differential system, bringing leak testing instruments to a level never seen before.
The new algorithms and measurement hardware eliminate typical defects in a differential system, such as differences in stabilization between the test part and the reference sample.
The new range of instruments is able to work in 3 different ways: Pure Differential, Dual Absolute and Central Zero.
The new Dual Absolute technology is so powerful and reliable that ForTest has decided to stop developing the classic differential system.



Sampling programmable Sensitive as a differential Dual Safe© Solid state measure

Double productivity No periodic maintenance High pressure test Measurement width


A touch of innovation.

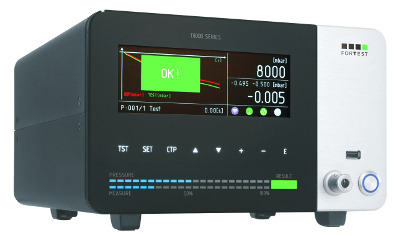

The video controller “ForTest MMI” brought a superior level of human-machine interaction, thanks to an innovative capacitive panel in tempered glass, around a splendid 6.2” colour display.
Parameter programming is much faster thanks to the new numerical keyboard integrated in the menus, and the big display makes clearer the view of the test cycle.
The main screen also enables interaction with shortcut functions, such as test program change, "smart" test archive menu and locking/unlocking using a password.


6.2” colour display Test graphic Full area touch screen Extended programming keyboard

Limitless connectivity.
The new T8090 equipment includes ports for the USB slave, RS232, RS485, Profinet, EtherNet IP and EtherCAT. Assembly may also include an optional Ethernet port and a 26-pole connector with 4 inputs and 8 outputs, which are completely programmable, for interfacing with the external valves, safety barriers, switches, etc...
The front panel has a master USB port for connection to a USB key to save the tests conducted, backup/restore parameters and upgrade tool firmware.
The connection to thermal printers, barcode/data-matrix readers and markers takes place automatically using an internal menu.


USB key High power outputs RS232, RS485, Profinet , EtherNet IP Ethernet and auxiliary connector

Always better measurements.
The test cycle was further accelerated thanks to processor and coprocessor interaction, maintaining the reliability that has always made ForTest unique.
We can say with certainty that T8090 avails of the most advanced measurement section in the world, thanks to the centring technology in windows and the double Faraday optical-isolated cage, which reduces the settling times under 18 ms.
This gives a real measurement resolution of 0.1 Pa at 1 bar (0.5 Pa at 6 bar), stable and noise-free.


Built-in processor and coprocessor Centring technology in windows    Resolution from 0.1 Pa

Optimised pneumatic section.
Assembly of the latest generation solenoid valves has enabled a 30% increase in the filling speed compared to the previous model, maintaining reliability unaltered over time. Our tools do not require expensive maintenance in the pneumatic department. Actually, our objective is to make them increasingly reliable and long-lasting.


Filling speed +30% High strength against humidity No periodic maintenance

Innovative design.
What appears to be a simple design exercise, in fact hides an in-depth study to make use and understanding of the tool as simple as possible.
The front panel is made of a single sheet of tempered glass and aluminium, which makes it extremely easy to clean, making the T8090 suitable for use in the laboratory and on the production line.
The extensive internal menus are easy to understand and the graphic interface was designed to only display important information.
Everything is exactly where it should be.


User-friendly interface Easy to clean Use in sectors at 360°



Model 0-1bar 1-2bar 2-6bar 6-10bar 10-20bar 20-200bar
Accuracy Dp 0,5% RDG+3DGT 0,5% RDG+3DGT 0,5% RDG+3DGT 0,5% RDG+3DGT 0,5% RDG+3DGT 0,5% RDG+3DGT
Range of measurements Dp 0-65 mbar 0-65 mbar 0-65 mbar 0-650 mbar 0-650 mbar 0-650 mbar
Resolution Dp 0,001 mbar 0,002 mbar 0,005 mbar 0,01 mbar 0,1 mbar 0,1 mbar
Direct pressure accuracy 0,5%FS 0,5%FS 0,5%FS 0,5%FS 0,5%FS 0,5%FS
Direct pressure measurement range 0-FS 0-FS 0-FS 0-FS 0-FS 0-FS
Direct pressure resolution 0,1 mbar 0,1 mbar 0,1 mbar 1 mbar

1 mbar 10 mbar
Accuracy measuring loss in cc/’ 1%RDG+0,03cc/min 1%RDG+0,03cc/min 1%RDG+0,03cc/min 1%RDG+0,03cc/min 1%RDG+0,03cc/min 1%RDG+0,03cc/min
Measurement range in cc/’ 0-10 cc/min 0-10 cc/min 0-10 cc/min 0-10 cc/min 0-10 cc/min 0-10 cc/min
Measured measurement resolution in cc/’ 0,01 cc/min 0,01 cc/min 0,01 cc/min 0,01 cc/min 0,01 cc/min 0,01 cc/min
Accuracy measure volume in cc 1%RDG+2cc

1%RDG+2cc

1%RDG+2cc

1%RDG+2cc

- -
Volume range in cc 0-500 cc 0-500 cc 0-500 cc 0-500 cc - -
Volume measurement resolution in cc 0,1 cc/min 0,1 cc/min 0,1 cc/min 0,1 cc/min - -
Measure unit mbar, bar, psi, mmHg, mmH2O, Pa, HPa, cc/min, cc/h, pressure/s.
Dimensions 270X160X300 mm
Weight 8 kg
Display size 800x280 pixel
Operating temperature range 5-40 °C
RS232 ports 2
RS485 ports 1
“master” usb port 1
“slave” usb port 1
Ethernet port Optional
I/O signals Start, Stop, Filling, Test, Good, Reject, 4BCD
Auxiliary I/O signals (optional) 8 output programmable, 4 input programmable, 4BCD
Number of programs 300
 Test archive memory Advanced
Password block Yes
Program name Yes , 16 characters
Note The resolution to be considered for accuracy is always 1 Pa.

Reference Normatives: EN 61010-1, EN61326-1 / EN61326/A1, EN61000-3-2 / EN61000-3-2/A14, EN61000-3-3 / EN61000-3-3/A1, EN61000-4-2 / EN61000-4-2/A1, EN61000-4-3 / EN61000-4-3/A1 / EN61000-4-3/A2, EN61000-4-4, EN61000-4-5, EN61000-4-11, EN1779

  • The resolution for uncertainty calculation is 1 Pa up to 10 bar.
  • The flow measurement of the flow meters is of mass type and referred to the reference condition of 0°C - 1013,25mbar.
  • Flow measurement of leak test equipment is volumetric.
  • Accuracy data are referred to and guaranteed under laboratory calibration conditions.
  • The accuracy of the flow measurement is referred up to 2 bar, for higher pressures variations are possible depending on the characteristics of the model.
  • For measurement scales greater than the limits indicated, the accuracy will be specified in the offer phase.

* The volumetric measurement is only present if the volumetric measurement option is foreseen

  • External exhaust solenoid with protection filter
  • 3 way pneumatic valve
  • Pilotage solenoid
  • 5 way Pneumatic valve
  • External start button
  • External start/abort pushbutton
  • External pushbutton 4 programs selection
  • Start pedal
  • Barcode reader
  • Adhesive label for printer 4500pcs
  • Aux signals extension cable
  • Venturi Vacuum generator
  • Air filter
  • Staubli male connector
  • Precision micrometer nozzle
  • Micrometer nozzle
  • M series manager software
  • TTY
  • Serial protocol ForTest
  • Electrovalve group "cylinder's" type with filter
  • PC serial cable owner - M Series
  • External temperature probe
  • 3-way pneumatic valve with pilot valve
  • MIXER-07
  • Software Data Manager (data logger)
  • Staubli female fitting
  • Thermal printer with peel-off
  • Thermal printer without peel
  • Adapter cable AUX M Series - ET Series
  • Remote Start / Abort / Good / Reject
  • Air filter 5 micron

  • Interior exhaust valve
  • Pneumatic filling fast
  • Pneumatics with micro electro valves
  • Kit sniffer Hydrogen H2
  • Frontal connector for Staubli calibrated leak - (STANDARD)
  • Frontal precision pressure regulator
  • Electronic pressure Regulator
  • Auto zero primary pressure circuit
  • Positive test and negative test
  • Pre-Filling
  • Waiting Primary pressure reading
  • Secondary Output of Waste (third result)
  • Barometric measurement
  • Leak Analog Output
  • I/O 24 Vdc expansion signal card
  • Bi-manual logic Start Input
  • Ethernet plug/TCP-IP
  • Active USB port - (STANDARD)
  • WI-FI connection
  • Radio remote control selection Kit
  • High resolution measure - (STANDARD)
  • Capacitance meter for piece volume measure
  • Double branches of pre-regulated pressures
  • Dynamic Offset Correction
  • Profinet Interface
  • EtherCAT Interface
