T8970

Universal continuous measurement leak tester for the gas sector


Continuous measurement for the gas sector.

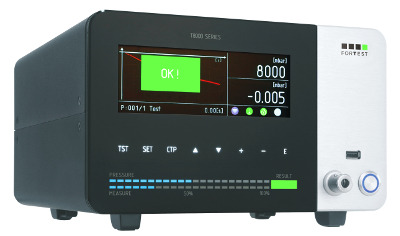

T8970 is a particular leak testing equipment with continuous measurement, designed for specific parts with gas ramps, stoves or repair stations.
This technology will ensure very fast testing in sequence of the various rings and taps of a gas ramp, starting in automatic mode as soon as you connect to the inbound gas supply and displaying the leaks detected in real time.
The "volumetric measurement" function is standard, enabling display of the leak directly in cc/h or cc/min, to meet sector standards.
T8970 has an automatic electronic regulator, which enables stable and continuous adjustment of the test pressure, especially in the tap opening phase.



Direct measurement in cc/h or cc/min Automatic adjustment of the pressure Automatic start of the test cycle

Limitless connectivity.
The new T8970 equipment includes ports for the USB slave, RS232, RS485, Profinet, EtherNet IP and EtherCAT. Assembly may also include an optional Ethernet port and a 26-pole connector with 4 inputs and 8 outputs, which are completely programmable, for interfacing with the external valves, safety barriers, switches, etc...
The front panel has a master USB port assembled on it for connection to a USB key to save the tests conducted, backup/restore parameters and upgrade the firmware.
The connection to thermal printers, barcode/data-matrix readers and markers takes place automatically using an internal menu.


Usb key High power outputs RS232, RS485, Can, TTY Ethernet and auxiliary connector

Always better measurements.
The test cycle was further accelerated thanks to processor and coprocessor interaction, maintaining the reliability that has always made ForTest unique.
We can say with certainty that T8970 avails of the most advanced measurement section in the world, thanks to the centring technology in windows and the double Faraday optical-isolated cage, which reduces the settling times under 18 ms.
This gives a real measurement resolution of 0.1 Pa at 1 bar (0.5 Pa at 6 bar), stable and noise-free.


Built-in processor and coprocessor Centring technology in windows 0.1 cc/h resolution

Optimised pneumatic section.
Assembly of the latest generation solenoid valves has enabled a 30% increase in the filling speed compared to the previous model, maintaining reliability unaltered over time. This instrument do not require expensive maintenance in the pneumatic department. Actually, our objective is to make them increasingly reliable and long-lasting.


Filling speed +30% High strength against humidity No periodic maintenance

Innovative design.
What appears to be a simple design exercise, in fact hides an in-depth study to make use and understanding of the equipment as simple as possible.
The front panel is made of a single sheet of tempered glass and aluminium, which makes it extremely easy to clean, making the T8970 suitable for use in the laboratory and on the production line.
The extensive internal menus are easy to understand and the graphic interface was designed to only display important information.
Everything is exactly where it should be.


User-friendly interface Easy to clean Use in sectors at 360°



Model 0-1 bar
Accuracy Dp 0,5% RDG+3DGT
Range of measurements Dp 0-65 mbar
Resolution Dp 0,001 mbar
Direct pressure accuracy 0,5%FS
Direct pressure measurement range 0-FS
Direct pressure resolution 0,1 mbar
Accuracy measuring loss in cc/’ 1%RDG+0,03cc/min
Measurement range in cc/’ 0-10 cc/min
Measured measurement resolution in cc/’ 0,01 cc/min
Accuracy measure volume in cc 1%RDG+2cc/min

Volume range in cc 0-500cc
Volume measurement resolution in cc 0,1 cc/min
Measure unit mbar, bar, psi, mmHg, mmH2O, Pa, HPa, cc/min, cc/h, pressure/s.
Dimensions 270X160X300 mm
Weight 8 kg
Display size 800x280 pixel
Operating temperature range 5-40 °C
RS232 ports 2
RS485 ports 1
“master” usb port 1
“slave” usb port 1
Ethernet port Optional
I/O signals Start, Stop, Filling, Test, Good, Reject, 4BCD
Auxiliary I/O signals (optional) 8 output programmable, 4 input programmable, 4BCD
Number of programs 300
 Test archive memory Advanced
Password block Yes
Program name Yes, 16 characters
Note The resolution to be considered for accuracy is always 1 Pa.

Reference Normatives: EN 61010-1, EN61326-1 / EN61326/A1, EN61000-3-2 / EN61000-3-2/A14, EN61000-3-3 / EN61000-3-3/A1, EN61000-4-2 / EN61000-4-2/A1, EN61000-4-3 / EN61000-4-3/A1 / EN61000-4-3/A2, EN61000-4-4, EN61000-4-5, EN61000-4-11, EN1779

  • The resolution for uncertainty calculation is 1 Pa up to 10 bar.
  • The flow measurement of the flow meters is of mass type and referred to the reference condition of 0°C - 1013,25mbar.
  • Flow measurement of leak test equipment is volumetric.
  • Accuracy data are referred to and guaranteed under laboratory calibration conditions.
  • The accuracy of the flow measurement is referred up to 2 bar, for higher pressures variations are possible depending on the characteristics of the model.
  • For measurement scales greater than the limits indicated, the accuracy will be specified in the offer phase.

  • External exhaust solenoid with protection filter
  • External start button
  • External start/abort pushbutton
  • External pushbutton 4 programs selection
  • Start pedal
  • Barcode reader
  • Adhesive label for printer 4500pcs
  • Aux signals extension cable
  • Air filter
  • Staubli male connector
  • Precision micrometer nozzle
  • Micrometer nozzle
  • M series manager software
  • TTY
  • Serial protocol
  • PC serial cable owner ---> M Series
  • External temperature probe
  • MIXER-07
  • Software Data Manager
  • Staubli female fitting
  • Thermal printer with peel-off
  • Thermal printer without peel
  • Adapter cable AUX M Series ---> ET Series
  • Remote Start / Abort / Good / Reject
  • Air filter 5 micron

  • Frontal connector for Staubli calibrated leak
  • Frontal precision pressure regulator
  • Electronic pressure Regulator
  • Auto zero primary pressure circuit
  • Pre-Filling
  • Secondary Output of Waste (third result)
  • Leak Analog Output
  • I/O 24 Vdc expansion signal card
  • Ethernet plug/TCP-IP
  • Active USB port
  • WI-FI connection
  • Radio remote control selection Kit
  • High resolution measure - (STANDARD)
  • Capacitance meter for piece volume measure - (STANDARD)
